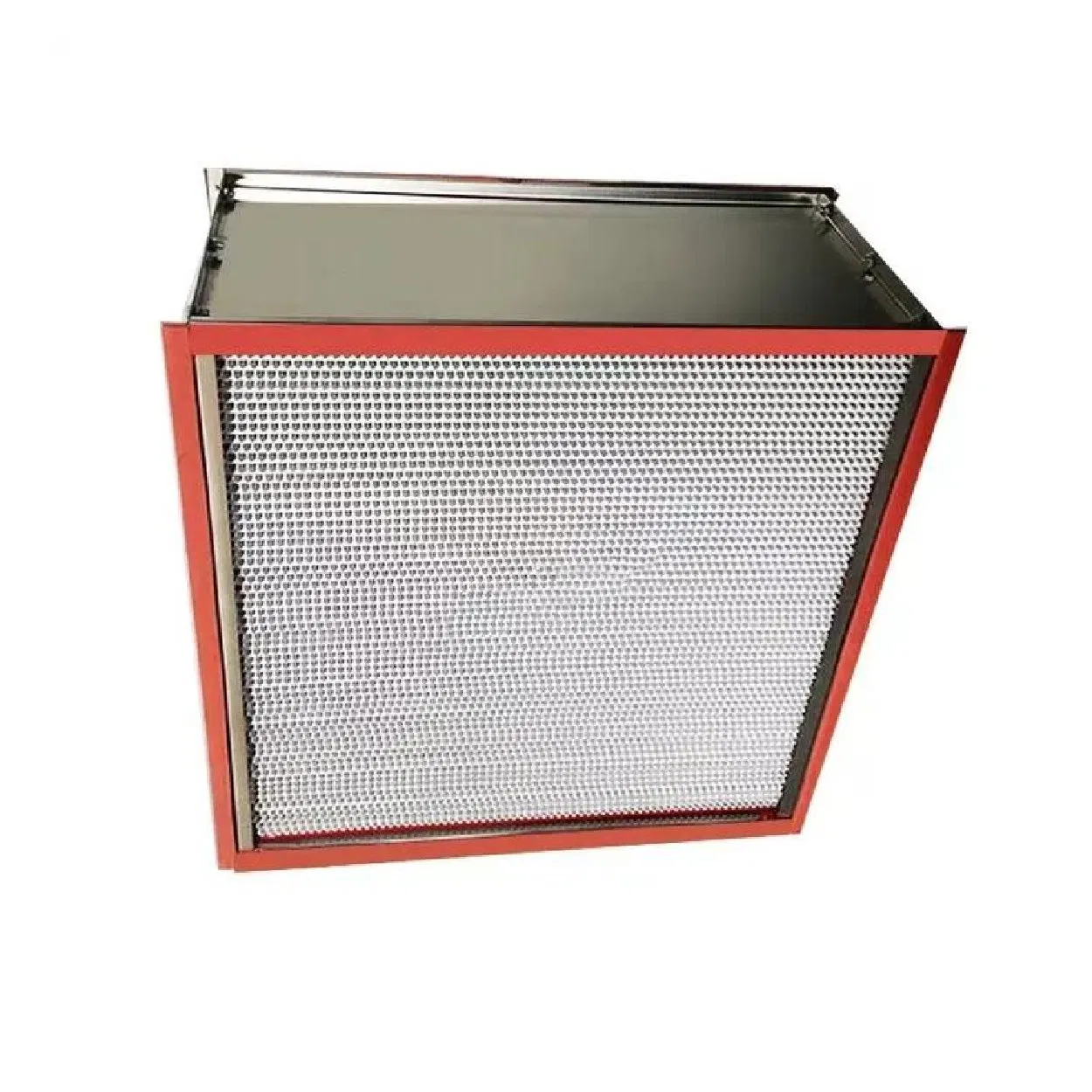

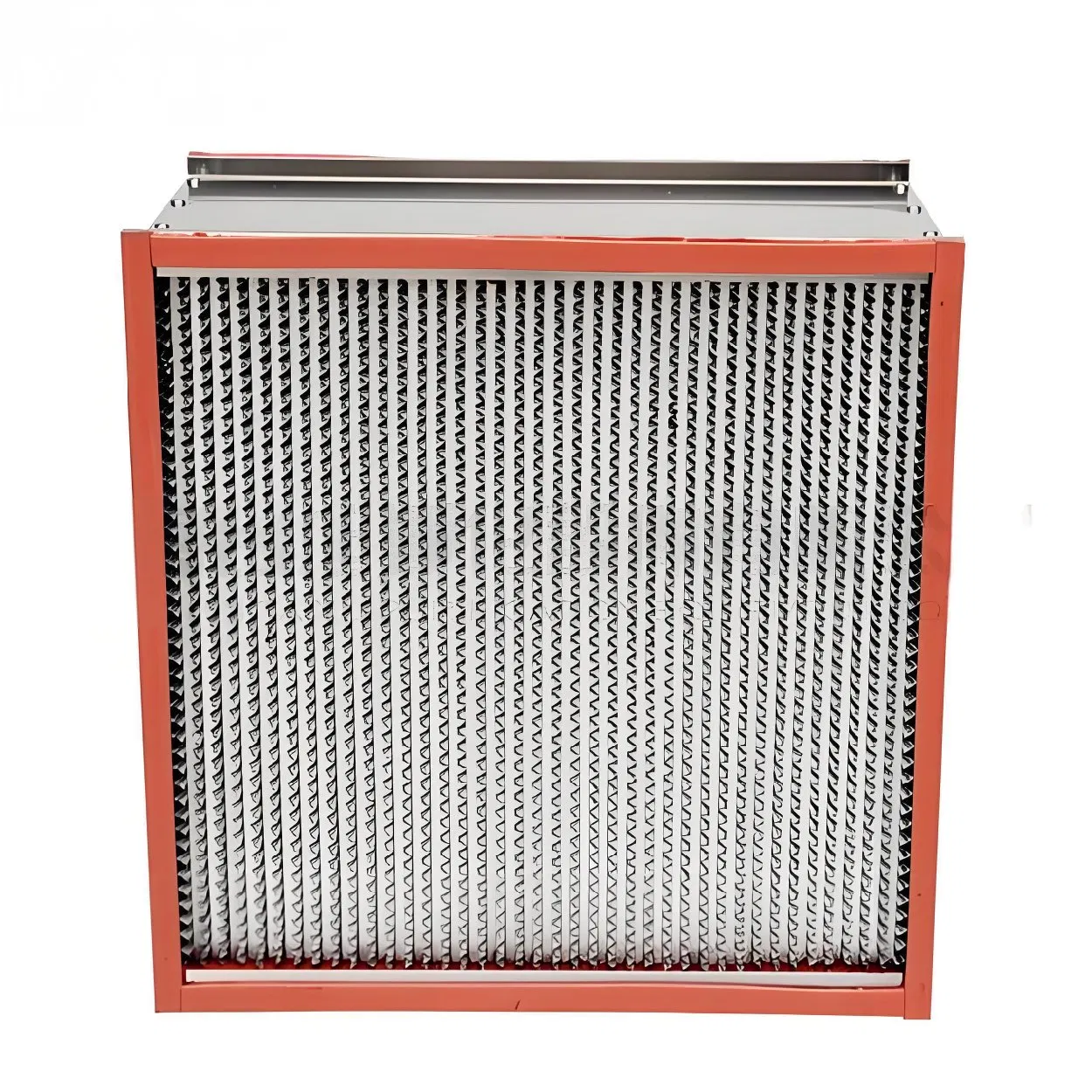

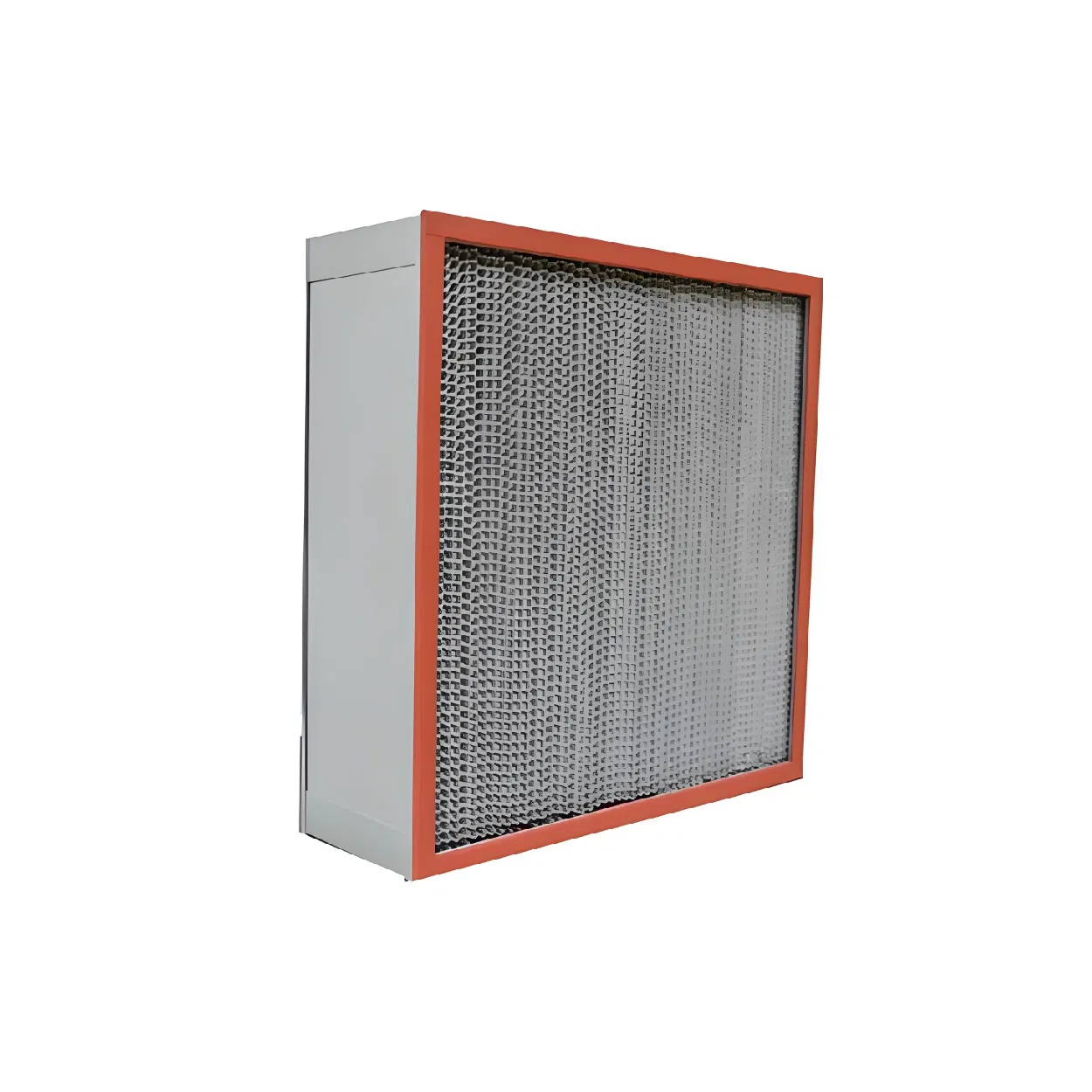

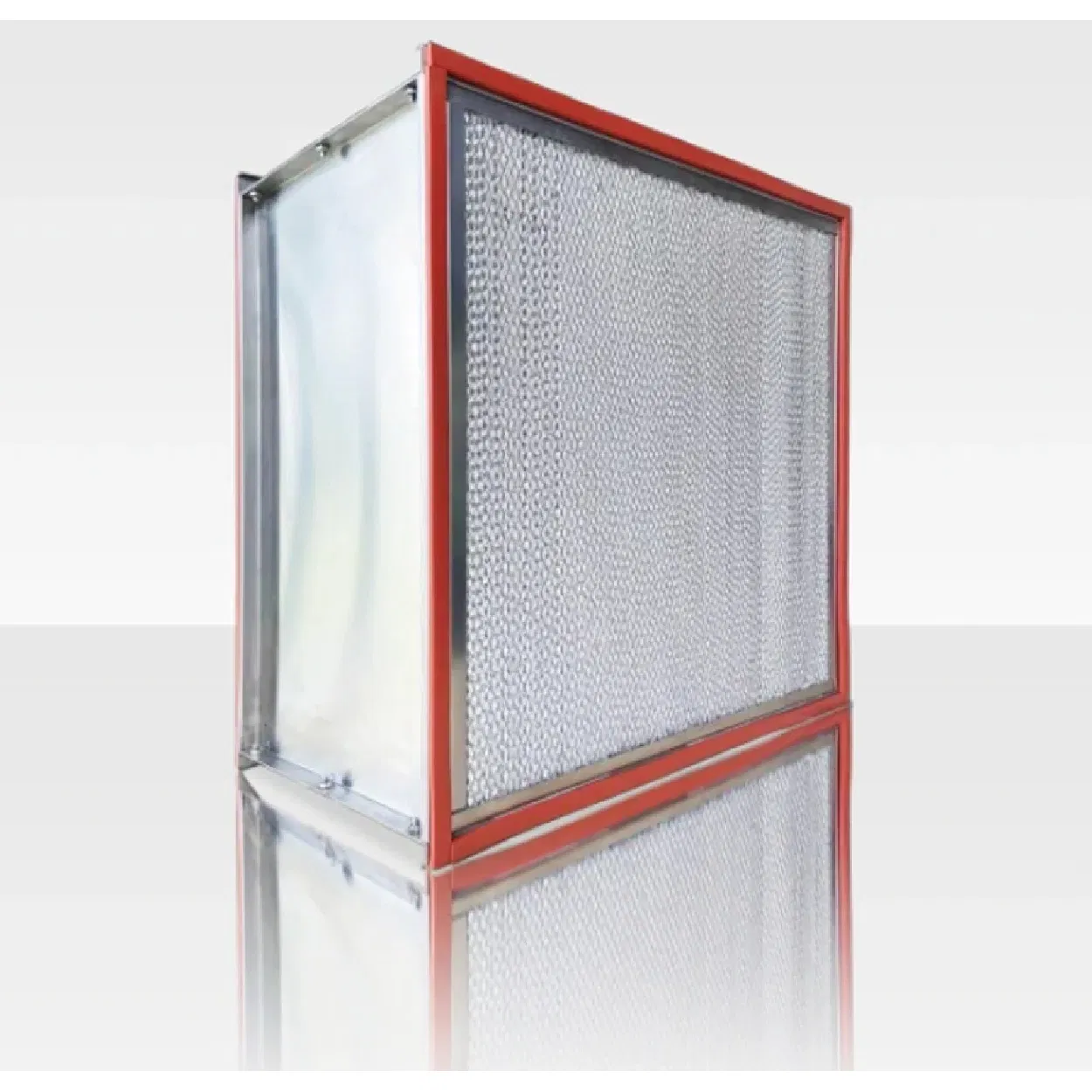

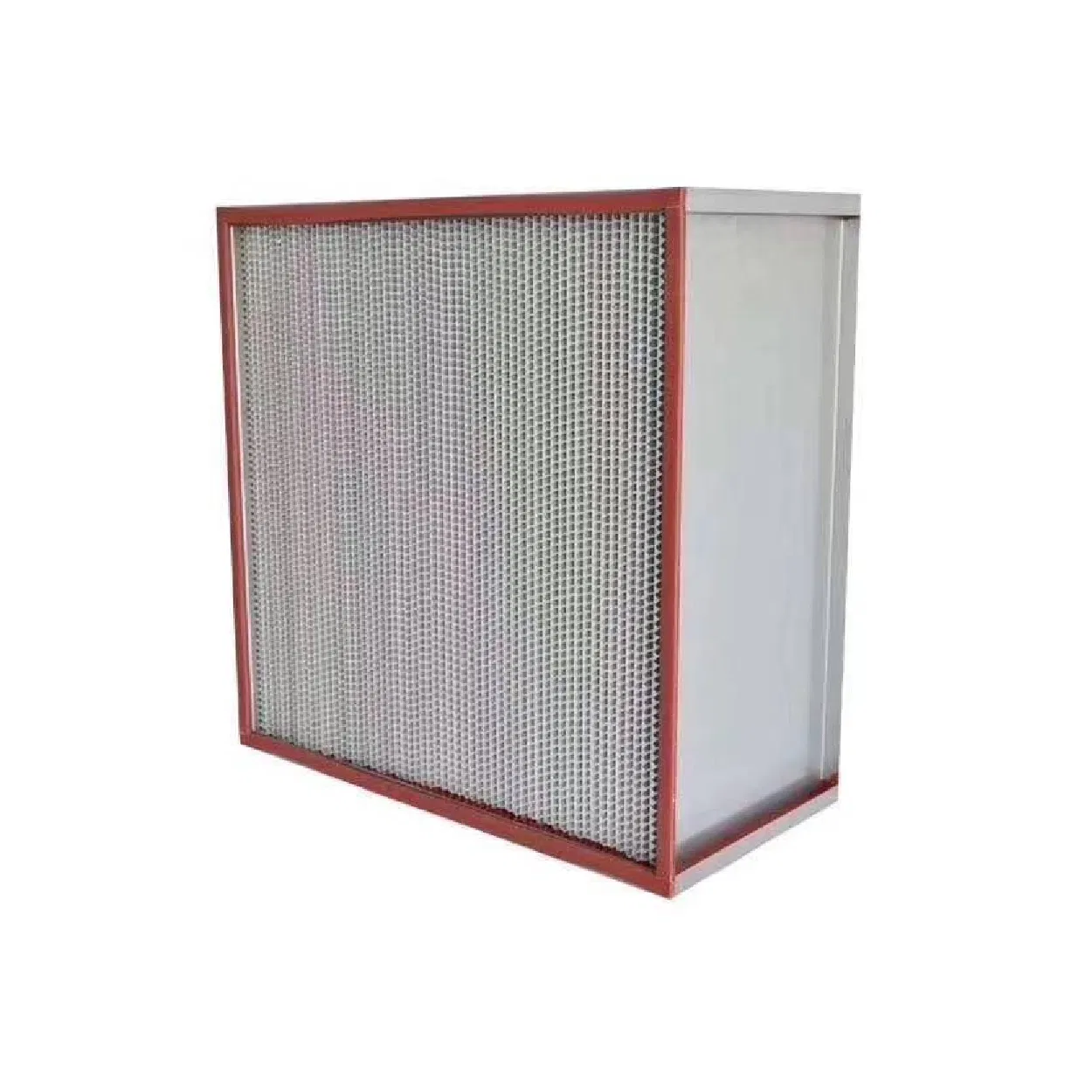

Designed specifically for Pharmaceutical Drying Chambers and GMP certified environments, this filter features a wedge-shaped pleated layer design to prevent damage to the filter media. Utilizing ultra-fine fiberglass high-density filter paper, it offers exceptional water resistance and flame retardancy.
Each unit is 100% leak-free, with assembly and testing performed in a controlled clean environment. The high temperature-resistant construction makes it ideal for challenging industrial thermal environments.

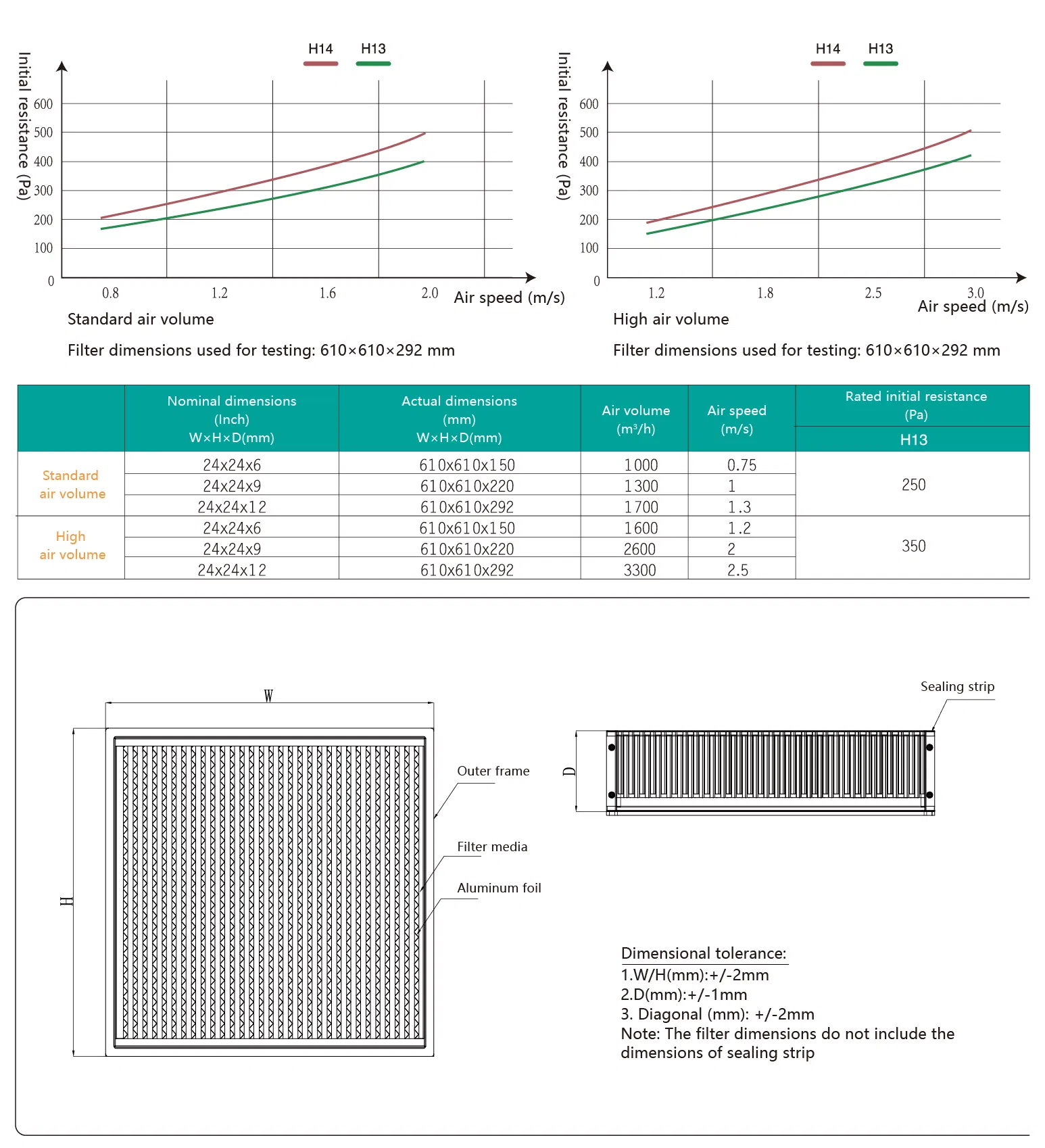

| Feature | Technical Specifications |
|---|---|
| Outer frame | Galvanized frame or stainless steel frame |
| Filter media | Special ultra-fine fiberglass filter paper |
| Optional thickness | 150mm / 292mm / 220mm |
| Filtration efficiency | H13 (EN1822) |
| Fire rating | Undergoing UL900 certification |
| Maximum service temperature | ≤150℃, ≤250℃ |
| Suggested final resistance | ≤500Pa |
| Sealant / Protective mesh | High-temp silicone / Stainless steel or Aluminum oxide mesh |
| Separation | Aluminum foil corrugated plate |
| Sealing gasket | High temperature-resistant silicone rubber |
Our manufacturing facility integrates research and development, design, and production of clean environment equipment and sterilization technology. With a highly skilled professional team where technical staff make up 36% of the workforce, we operate specialized workshops for filtration, sheet metal, welding, and assembly.
2,000m² R&D Center

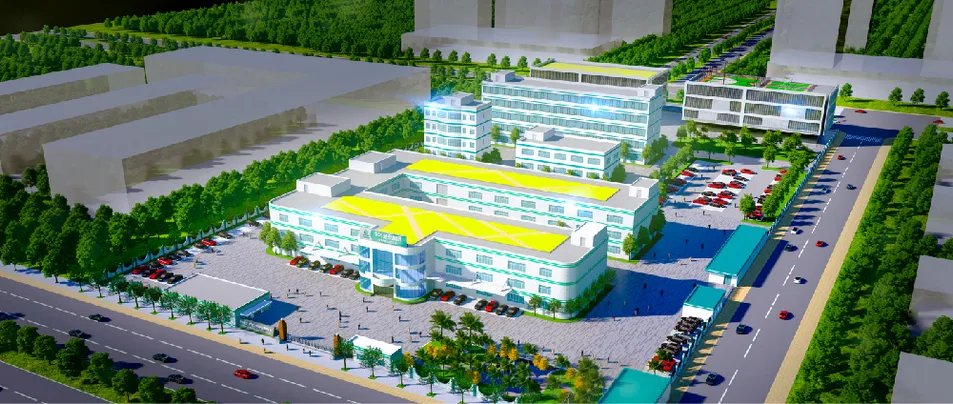

30,000+m² Factory

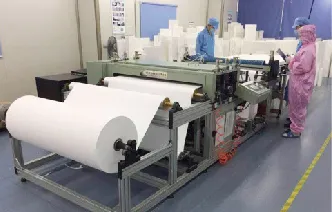

Equipped with advanced CNC machinery, laser cutting, and fully automatic welding systems, our production line ensures precision and high capacity. We hold more than 100 invention patents and multiple international certifications, including CE, UL, and ISO9001-2015.

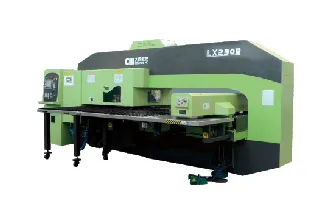

CNC Punching Machine

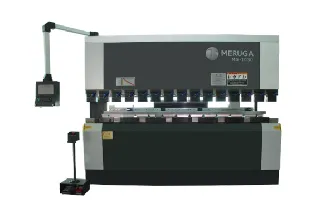

CNC Bending Machine

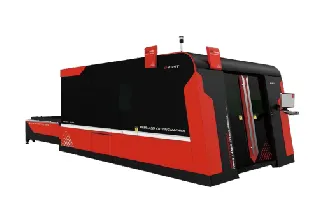

Laser Cutting Machine

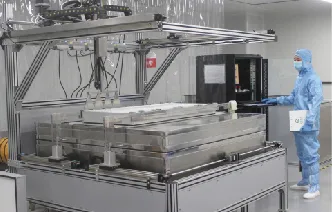

Automatic Pleating Machine
Automatic Pleating Line

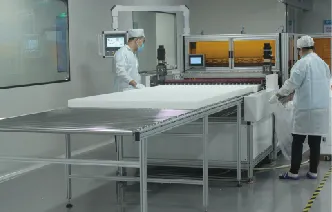

Automatic Test Bench
Vision: To become a global leading system integration supplier of clean environment and sterilization technology.
Mission: Improve life quality through technological innovation and pursue maximum customer value.
| Bio-safety Lab | Cellular Genes | Operating Room | Life Sciences |
| Disease Control | Food Processing | State Research Institute | Bio-pharma Solutions |

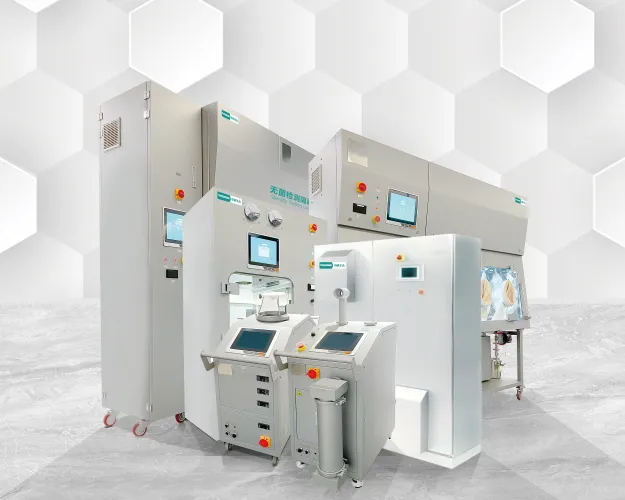

Life Science Sterilization

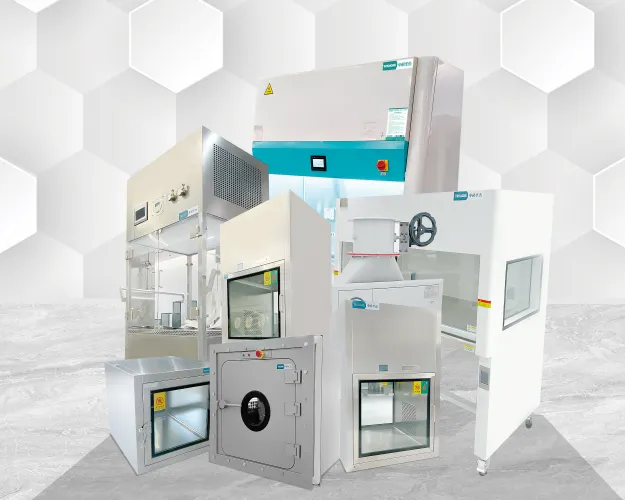

Biopharmaceutical Cleanroom

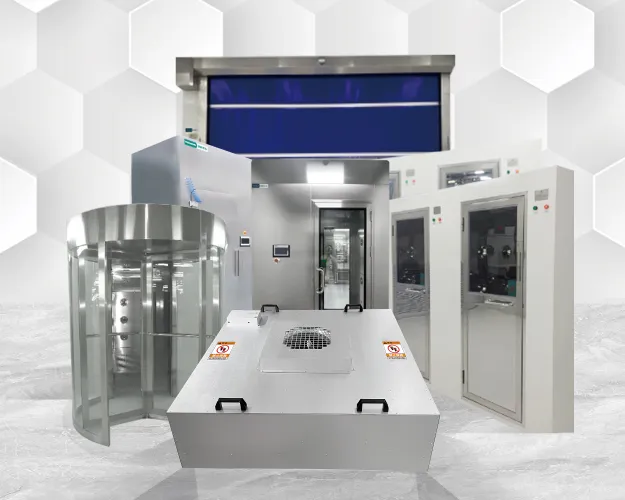

Electronics Contamination Control

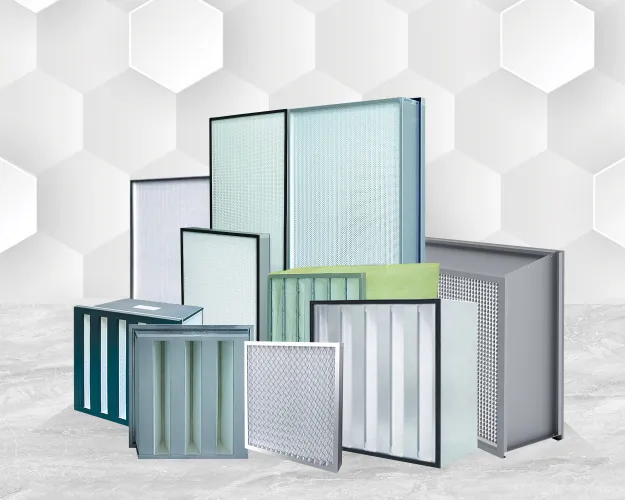

Air Filtration Systems
