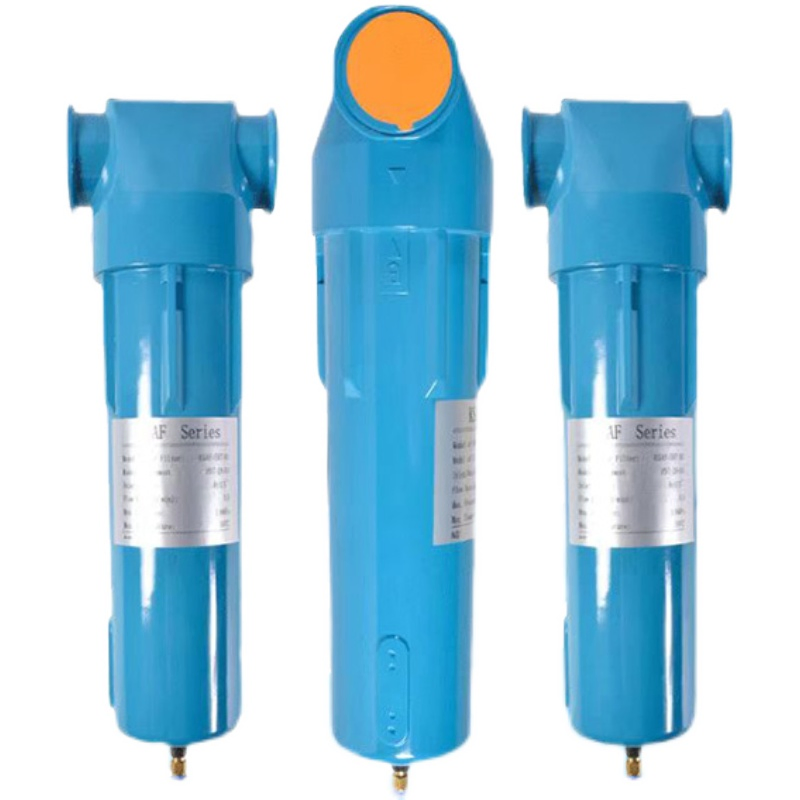

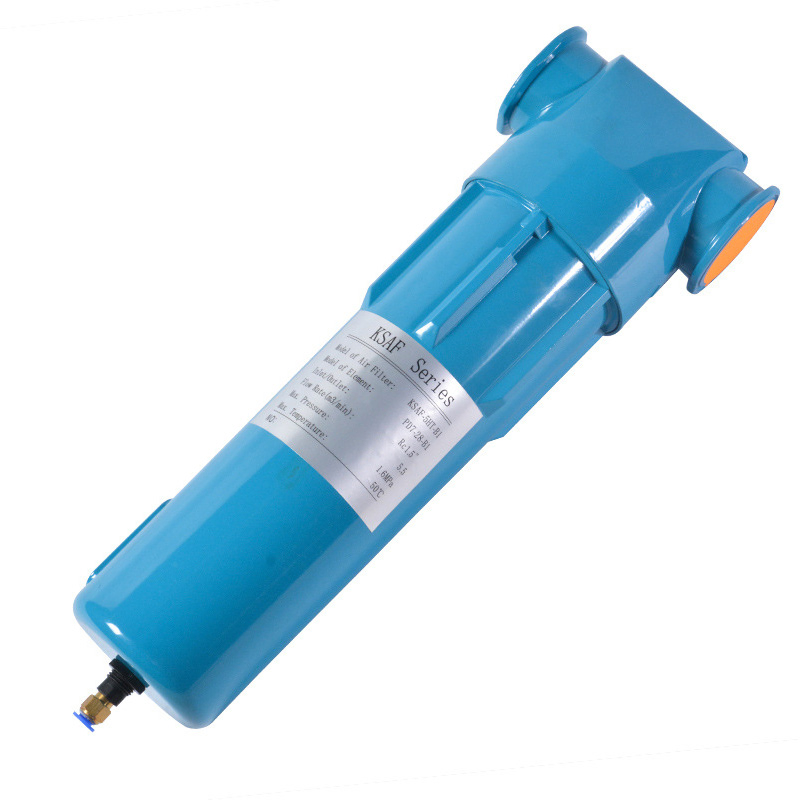

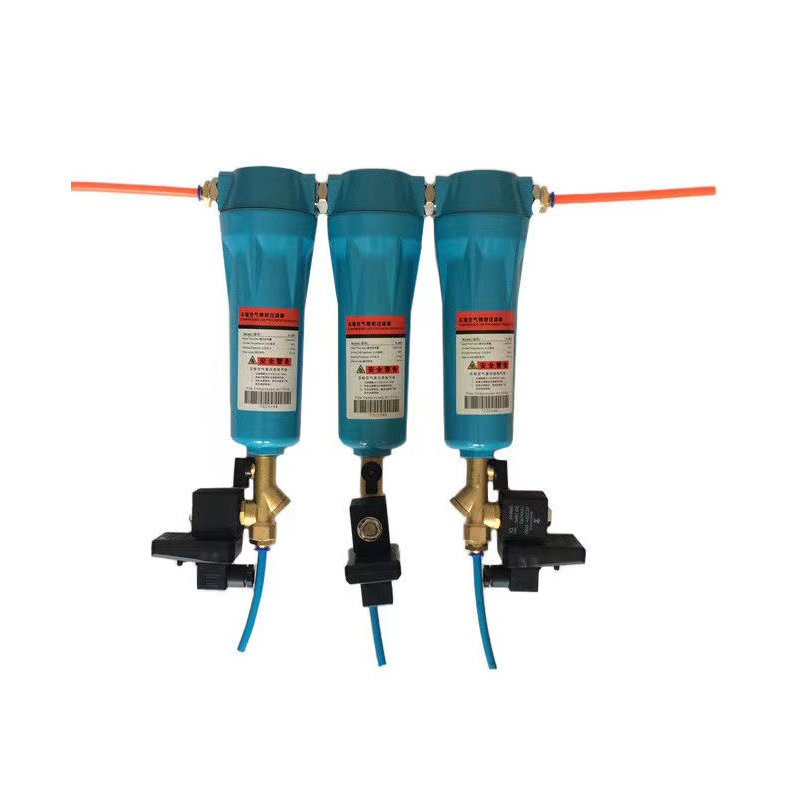

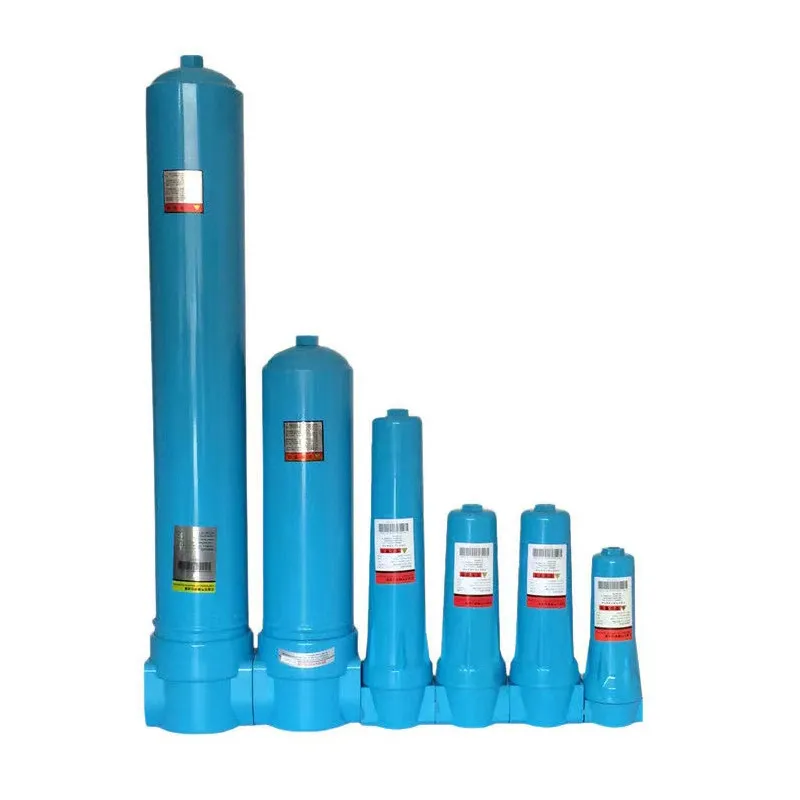

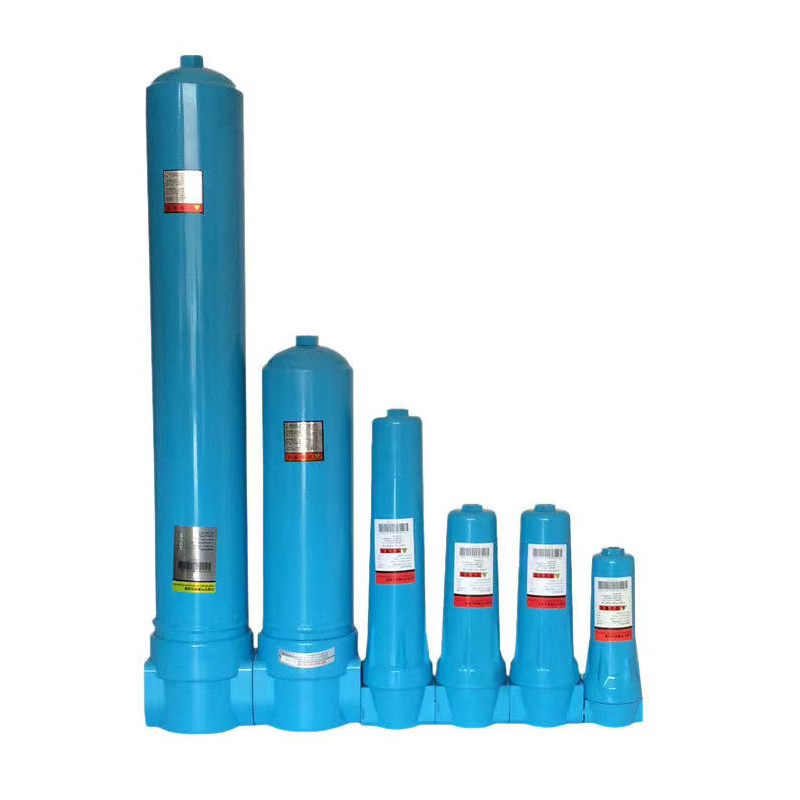

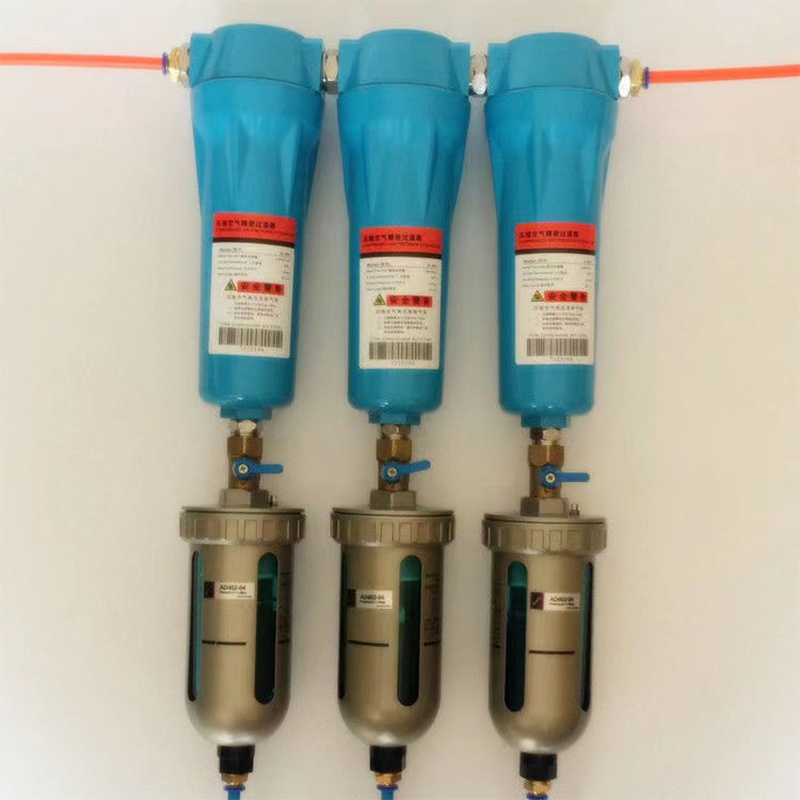

Kaishan Air Compressor Spare Part Precision Air Filter for Filter Purifying Equipment

1 / 5

Kaishan Air Compressor Spare Part Precision Air Filter for Filter Purifying Equipment

Customization:	Available
Material:	Metal
Application:	Industry

Send Inquiry

Product Description

📋 Basic Information

Model NO.

KSAF-1

Type

Air Filter

Filter Connector

226 Connector

Filtration Grade

HEPA Filter

Activated Carbon

Bulk Type

Orifice Size

RC1/2"

Dimensions

96X200

Flow Rate

1.2 Nm3/Min

HS Code

8421230000

Production Capacity

2000/Year

🚀 Product Description

High Precision Filter For Air Compressor

The unpurified compressed air contains pollutants such as oil mist, solids, impurities, and water. These pollutants are the natural enemies of modern industry to improve product quality and labor efficiency. KSAF series compressed air precision filter is a core product for air purification. It can effectively remove liquid water, dust and oil from compressed air. This series of filters are divided into two types: threaded connection (aluminum alloy housing) and flange connection (steel housing).

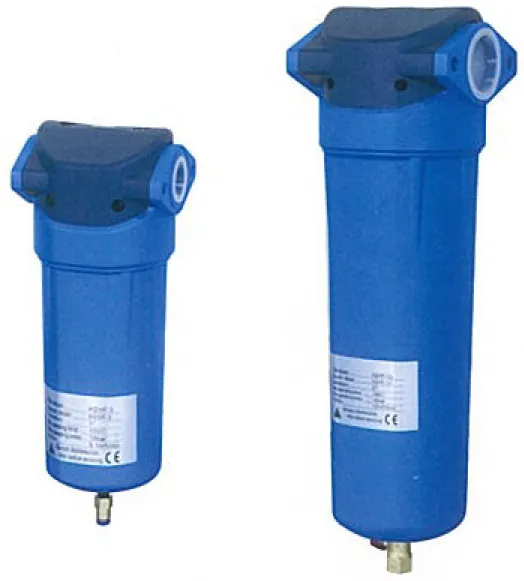

🔍 Detailed Visuals

⚙️ Technical Features & Design

🔹 Overall Design

The high-end filter is equipped with a sight glass to detect whether the drain is blocked. The meticulous design of the die-casting mold ensures that the product thickness is uniform and safe to use. The raw material uses A-grade aluminum ingots to ensure product durability.

🔹 Corrosion Resistance

The inner cavity of the filter shell is treated with anodizing, and the surface is sprayed with epoxy resin powder for superior anti-corrosion performance.

🔹 High-Performance Filtration

Utilizes special anti-leakage online detection technology to ensure filtration accuracy. Featuring American borosilicate nano glass fiber, it provides high dust holding capacity and long service life. Foldable filter elements increase the filter area, reducing pressure drop by 50% and increasing particle carrying capacity.

🔹 Humanized Interface

Clear gas flow direction indicators facilitate easy installation and maintenance. The flange filter housing design allows for simple filter element replacement, while tightening marks prevent improper force and air leakage.

📊 Product Parameters

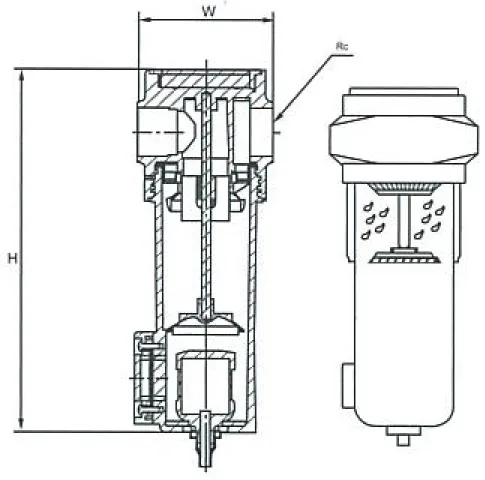

Model	Nozzle Size	Flow	Elements	Dimensions (mm)			Weight
Model	Nozzle Size	Nm³/min	Qty	Φ	W	H	KG
KSAF-1	Rc 1/2"	1.2	1	-	96	200	2.8
KSAF-2	Rc 1"	2.5	1	-	96	235	3.8
KSAF-3	Rc 1"	3.6	1	-	138	331	4.8
KSAF-5	Rc 1.5"	5.5	1	-	138	432	5.8
KSAF-12	Rc 2"	12	1	-	174	533	7
KSAF-25	DN80	26.8	1	159	399	1250	59
KSAF-50	DN100	53	3	273	513	1190	106
KSAF-100	DN150	110	5	412	637	1290	181
KSAF-300	DN250	300	13	562	832	1800	312
KSAF-600	DN400	600	28	812	1116	2000	493

❓ Frequently Asked Questions

1. What contaminants can the KSAF series filter remove?

The KSAF series effectively removes liquid water, solid impurities, dust, and oil mist from compressed air systems to protect downstream equipment.

2. How do I know if the filter drain is blocked?

Our filters are equipped with a built-in sight glass, allowing operators to visually inspect and detect any blockages in the drainage system easily.

3. What are the benefits of the anodized filter shell?

The internal anodizing treatment combined with an external epoxy resin powder coating provides exceptional anti-corrosion performance, extending the lifespan of the filter housing.

4. Why is the filter element foldable?

The foldable design significantly increases the total filtration area, which helps reduce the pressure drop by approximately 50% and improves the particle-carrying capacity.

5. Is it difficult to replace the filter elements?

No, the design is highly humanized. Threaded and flange housings are engineered for quick access, and clear tightening marks help ensure proper installation without air leakage.

6. What materials are used for the filtration media?

We utilize high-quality borosilicate nano glass fiber which ensures high efficiency, long life, and excellent hydrophobic (water-repelling) properties.
