Bag Dust Filter Collector Industrial Vacuum Cleaner

1 / 5

Bag Dust Filter Collector Industrial Vacuum Cleaner

Customization:	Available
Certification:	CE, ISO
Installation Method:	Vertical

Send Inquiry

Product Description

Basic Specifications

Model NO. DL

Operation Type Semiautomatic

Dust Collecting Dry Method

Type Bag-Type Dust Collector

Filter Area 100 ~ 2000 M²

Temperature -20℃ ~ 280℃

Package Size 589.00cm * 235.00cm * 239.00cm

Gross Weight 24000.00kg

Product Description

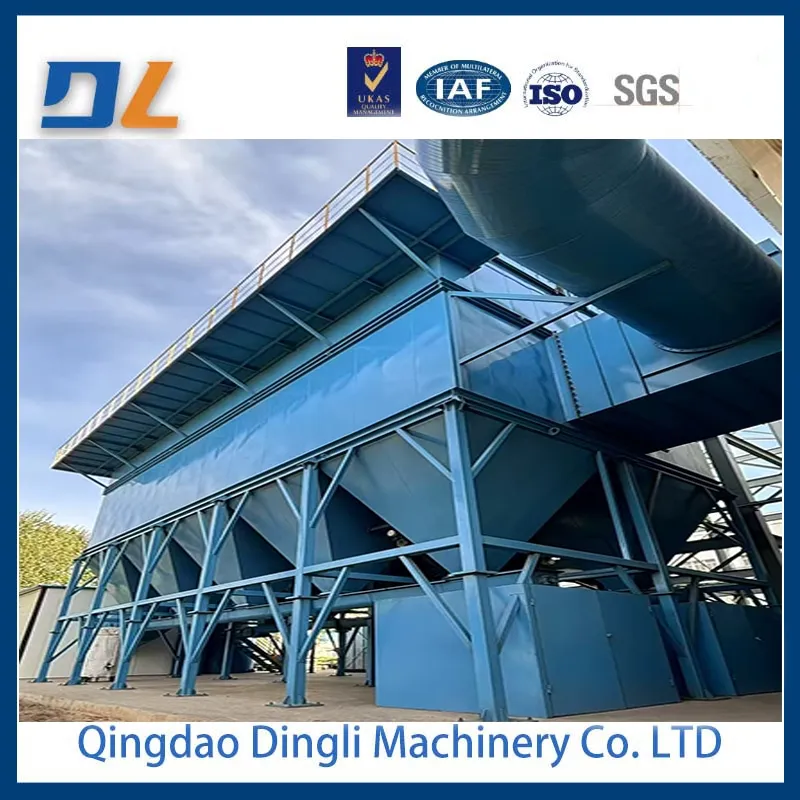

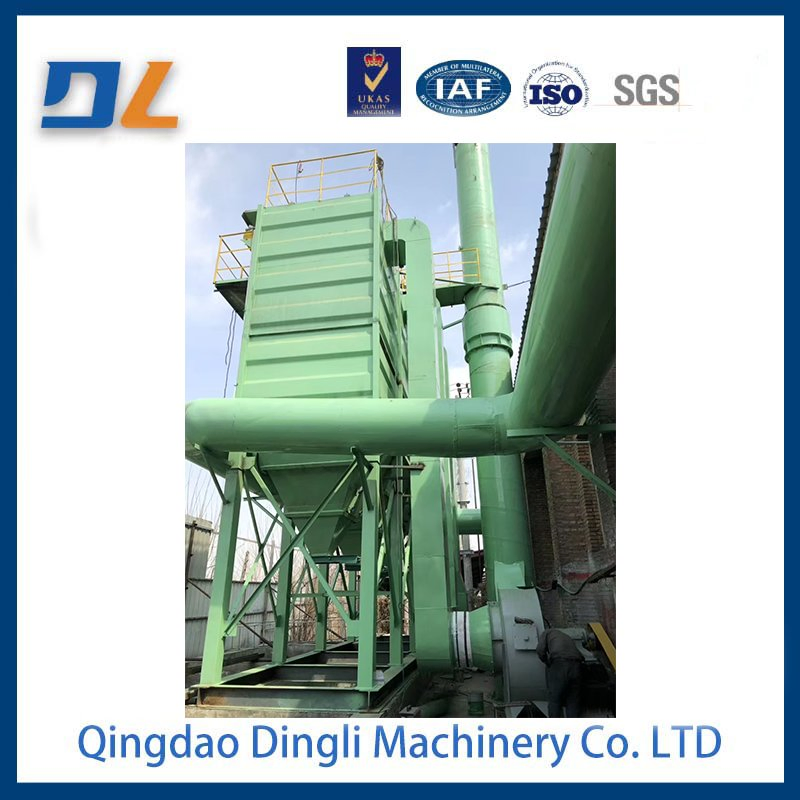

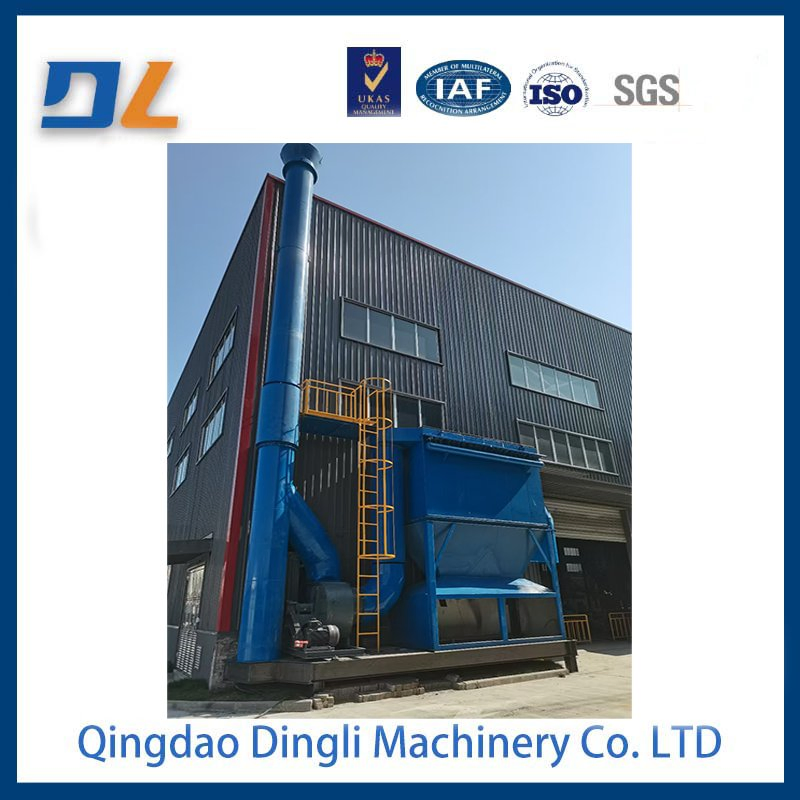

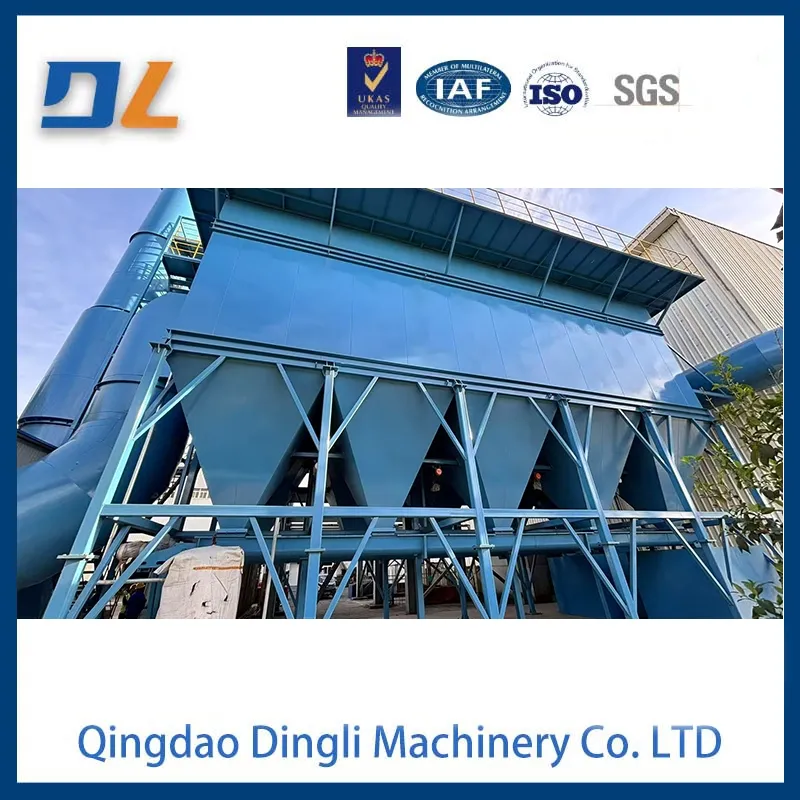

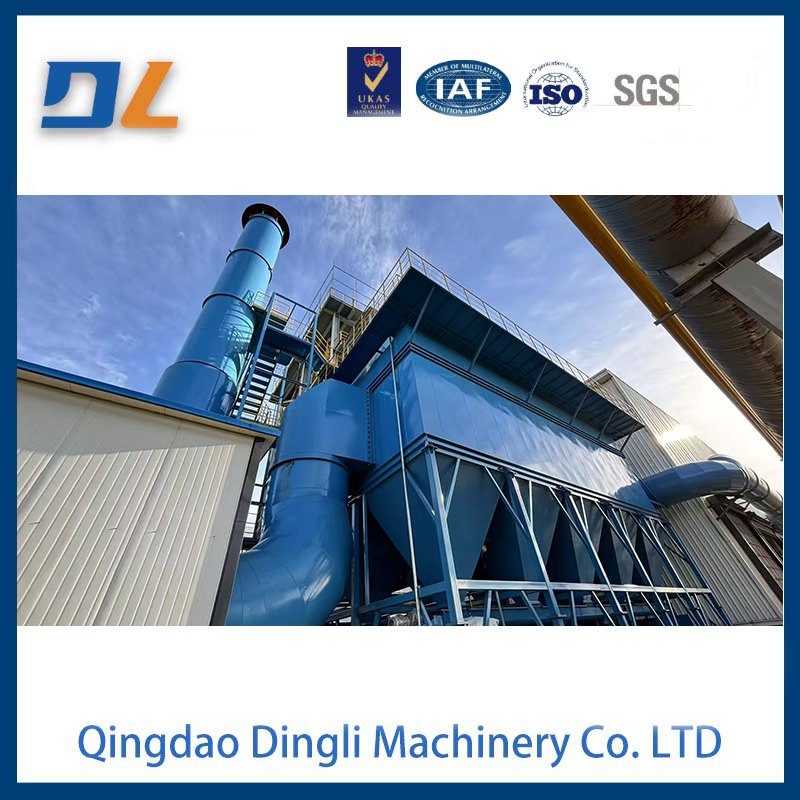

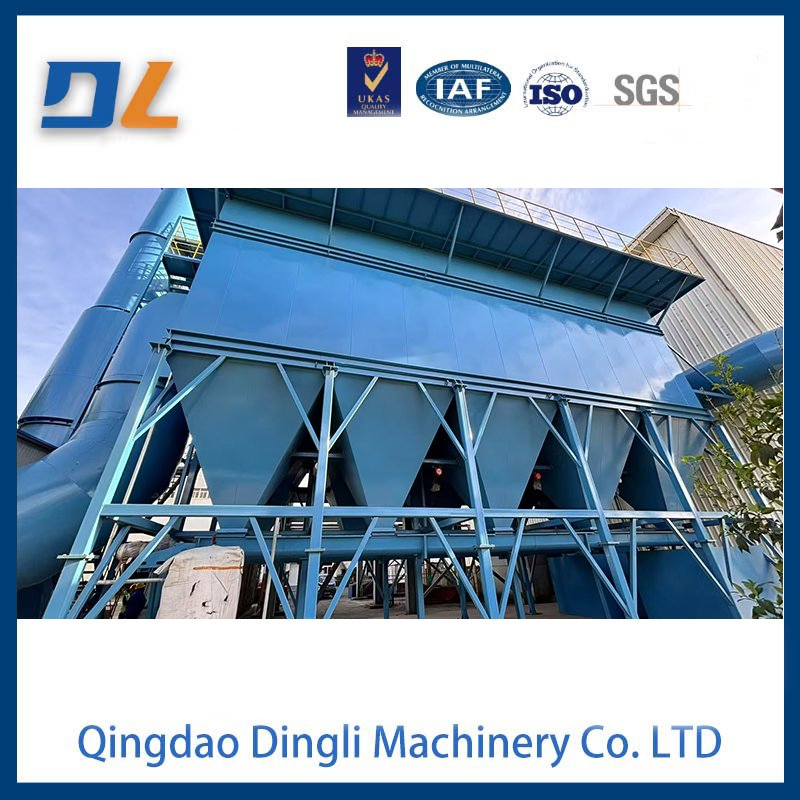

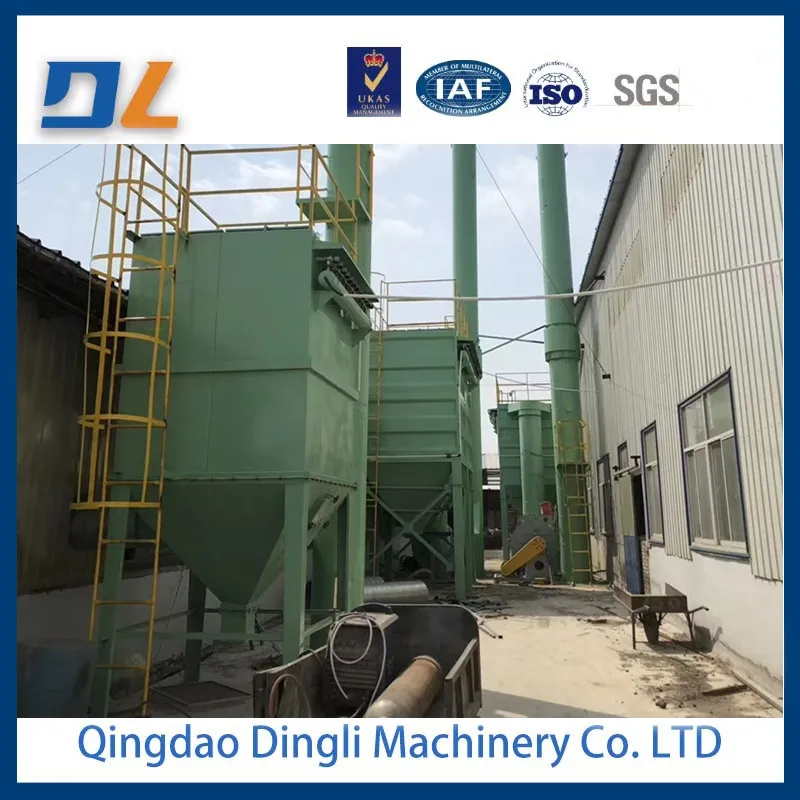

The baghouse dust collector is a high-efficiency dry dust removal equipment widely used in industries such as foundry, metallurgy, building materials, chemical, power generation, and grain processing. It is designed to capture and purify industrial dust generated during production processes. Based on the principle of fabric filter bags, this equipment uses compressed air pulse cleaning technology to achieve continuous operation and efficient dust removal. It can be customized according to airflow volume, filter material, cleaning method, and control system to meet various dust characteristics.

Product Features

High Efficiency: Dust removal efficiency up to 99%, emission concentration below 30mg/m³, meeting environmental standards.

Modular Design: Allows easy transportation, installation, and maintenance, reducing operational costs.

Versatile Materials: Compatible with various filter materials for high-temperature, corrosion-resistant, and explosion-proof applications.

Intelligent Control: Equipped with PLC system, supporting differential pressure automatic cleaning and remote monitoring.

Low Energy Consumption: Low-resistance filter media and high-efficiency fan system ensure stable operation.

Safety Systems: Optional spark detection, temperature monitoring, and fire suppression for hazardous environments.

Main Technical Specifications

Parameter	Specification
Airflow Capacity	5000 - 100000 m³/h (customizable)
Filter Area	100 ~ 2000 m²
Number of Filter Bags	64 - 512 items (depending on model)
Filter Material	Polyester / Aramid / PTFE / Glass fiber
Operating Temperature	-20℃ ~ 280℃
Cleaning Method	Pulse Jet with Compressed Air
Control System	PLC + HMI Touch Screen
Emission Concentration	≤30 mg/m³

Typical Applications

✔ Casting Molding Sand Dust Removal

✔ Metallurgical Furnace Gas Purification

✔ Chemical Dust Collection

✔ Boiler Flue Gas Treatment

✔ Grain Processing Dust Control

✔ Woodworking Dust Removal

Industrial Project Capabilities

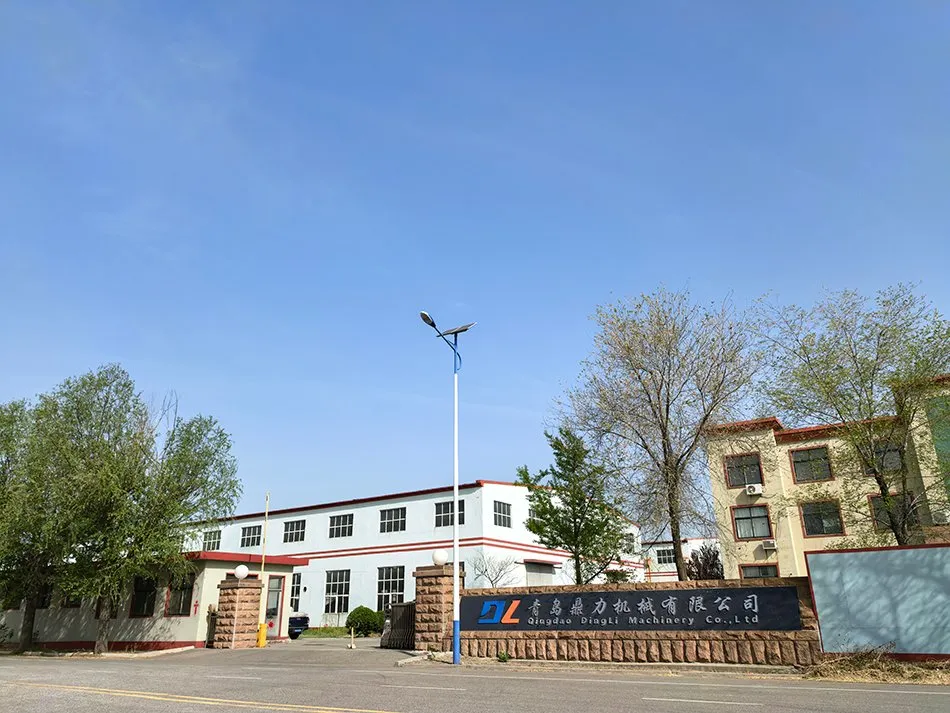

The facility specializes in the production of casting machinery and environmental protection equipment. We provide turnkey projects including design, manufacture, installation, and commissioning for:

20-180t/h Mechanized clay sand processing lines.
Annual output of 1,000 to 20,000 tons of condensed resin sand production lines.
Hot processing coated sand equipment (3,000 to 10,000 tons annual output).
Sodium silicate mechanical production lines (5-15t/h).
Three-stage sand-making and drying equipment (5-30t/h).
Shot blasting cleaning, lifting, conveying, and cooling equipment.

Frequently Asked Questions

1. What is the maximum dust removal efficiency of this equipment?

The baghouse dust collector achieves an efficiency of up to 99%, ensuring that emission concentrations remain below 30mg/m³.

2. Can the filter bags withstand high temperatures?

Yes, depending on the filter material selected (such as Aramid or Glass fiber), the system can operate in temperatures ranging from -20℃ up to 280℃.

3. Is the control system automated?

Yes, the system is equipped with a PLC intelligent control system and HMI touch screen for automatic pulse cleaning, fault alarms, and remote monitoring.

4. What industries are these collectors suitable for?

They are widely used in casting, metallurgy, chemical processing, wood processing, boiler flue gas treatment, and grain processing industries.

5. Can the airflow capacity be customized?

Absolutely. We offer customizable airflow capacities ranging from 5,000 to 100,000 m³/h to meet specific production requirements.

6. How is the cleaning of the filter bags performed?

The equipment utilizes high-pressure compressed air pulse jet cleaning, which allows for continuous operation without stopping the filtration process.
