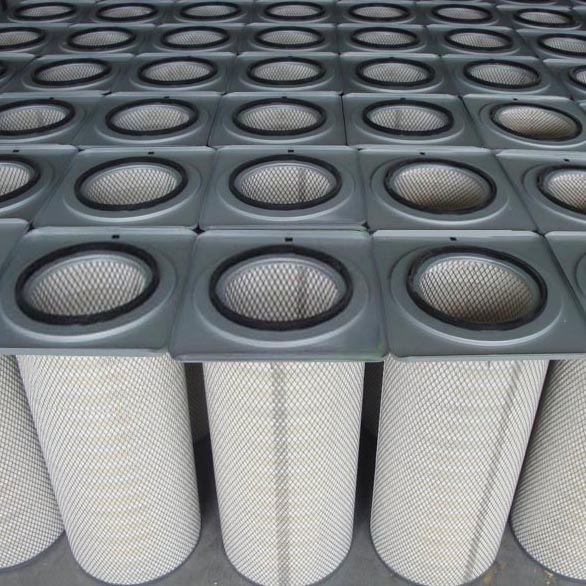

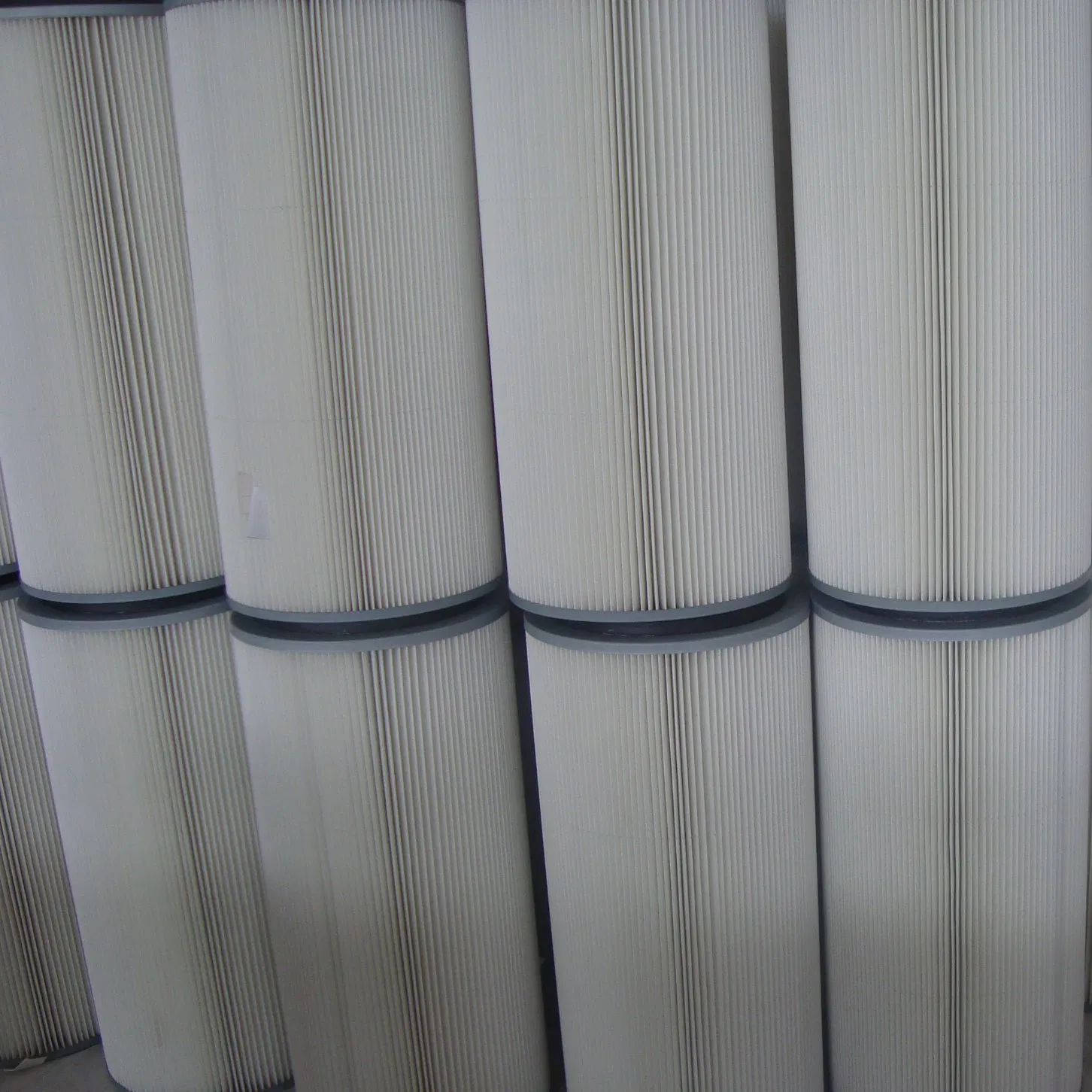

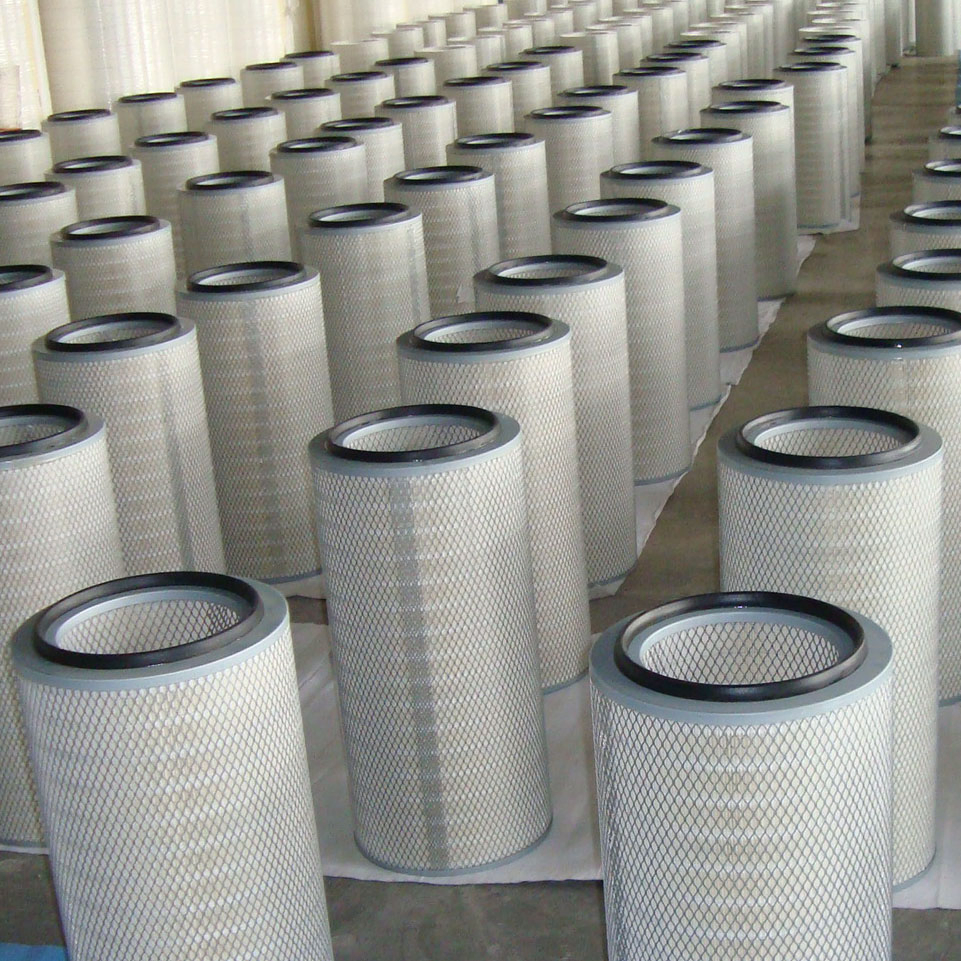

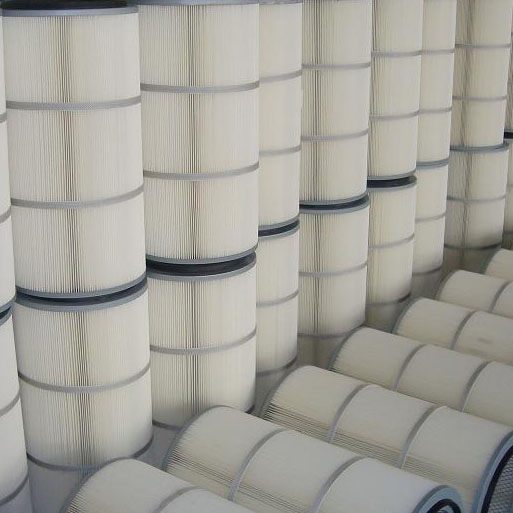

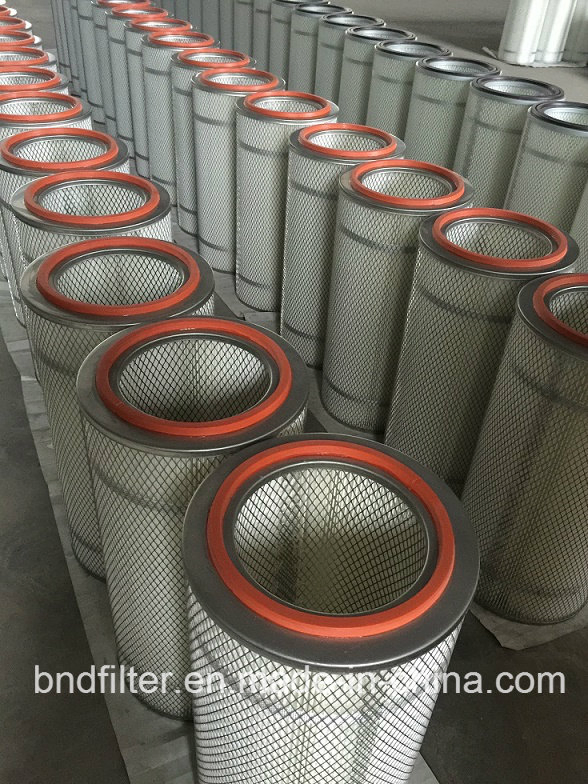

Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
1 / 5
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust
Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust

Industrial 325X660 Dust Collector Filter cartridge for Powder Coating Dust

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
BND
Medium Material
Cellulose Paper
Efficiency
F9
Filtration Grade
Medium Filter
Type
Cartridge Filter
Filter Application
Powder Coating/Sand Blasting
Media
Cellulose Paper
Media Supplier
Hv America
Weight
123G/M2
Paper Content
80% cellulose, 20% polyester
Air Permeability
10cc/Cm2/Sec
Airflow Rate
800m3/H
Caps
Open/Open, Open/Closed, Bolt Hole, Drop-in, Flange
Lifetime
3000hrs
Transport Package
Inner Poly Bag, Outer Export Cartons
Specification
SGS Identification
Trademark
BND
HS Code
84219990
Production Capacity
10000PCS/Year
🛠️ Product Description

Cellulose Paper/Polyester Dust Collector Air Filter Cartridge For Industrial Air Cleaning:

  • Compact design, reliable performance.
  • Low energy consumption, highest filter efficiency and low cost.

Structural Components:

1. Top Cap:
Open steel plate, no rust
2. End Cap:
Open or closed steel plate, no rust
3. Filter Surface:
Various available
4. Inner Core:
Galvanized mesh
5. Outer Strip:
Two pieces as reinforcement
6. Gasket:
Seamless neoprene foam
Model Shape OD (mm) ID (mm) Length (mm/inch) Surface Area (m²)
BND32Rcylinder324213700(27.5")22.3
BND32Rcylinder324213735(29")23.5
BND408Fcylinder408293875(34.5")33.2
BND408Fcylinder408293559(22")21.6
BND32Rcylinder324213865(34")25
BND32Tcone445-324330-213660(26")23.3
BND32Tcone324-250213-134660(26")16.4
BND408Fcone408-324293-213711(28")23
(twist lock)cone408-324293-213925(36.6")34.3
(TenKay type)cylinder324 (Cap 406×362)213668(26.3")22
(TenKay type)cylinder324 (Cap 406×362)213875(34.5")28
🖼️ Product Display

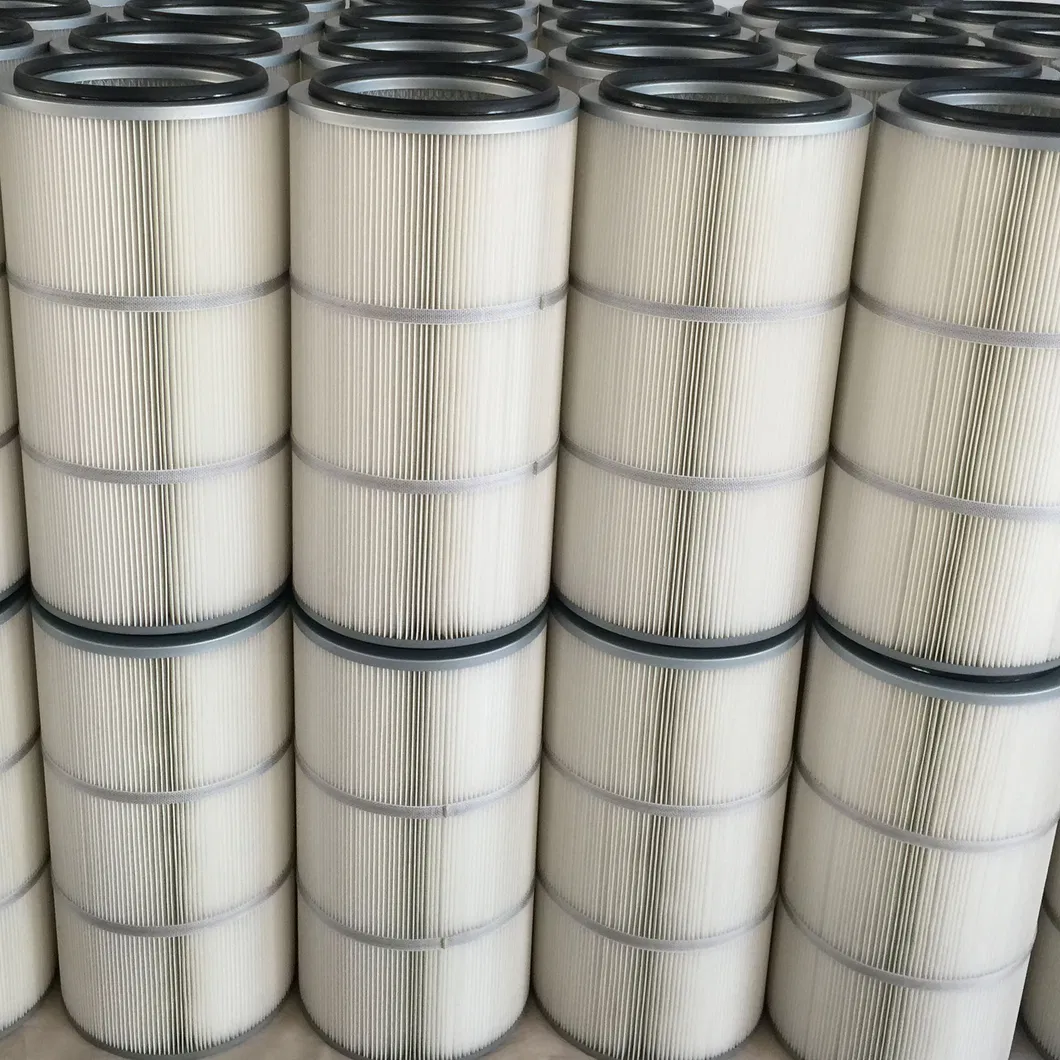

Dust Collector Filter

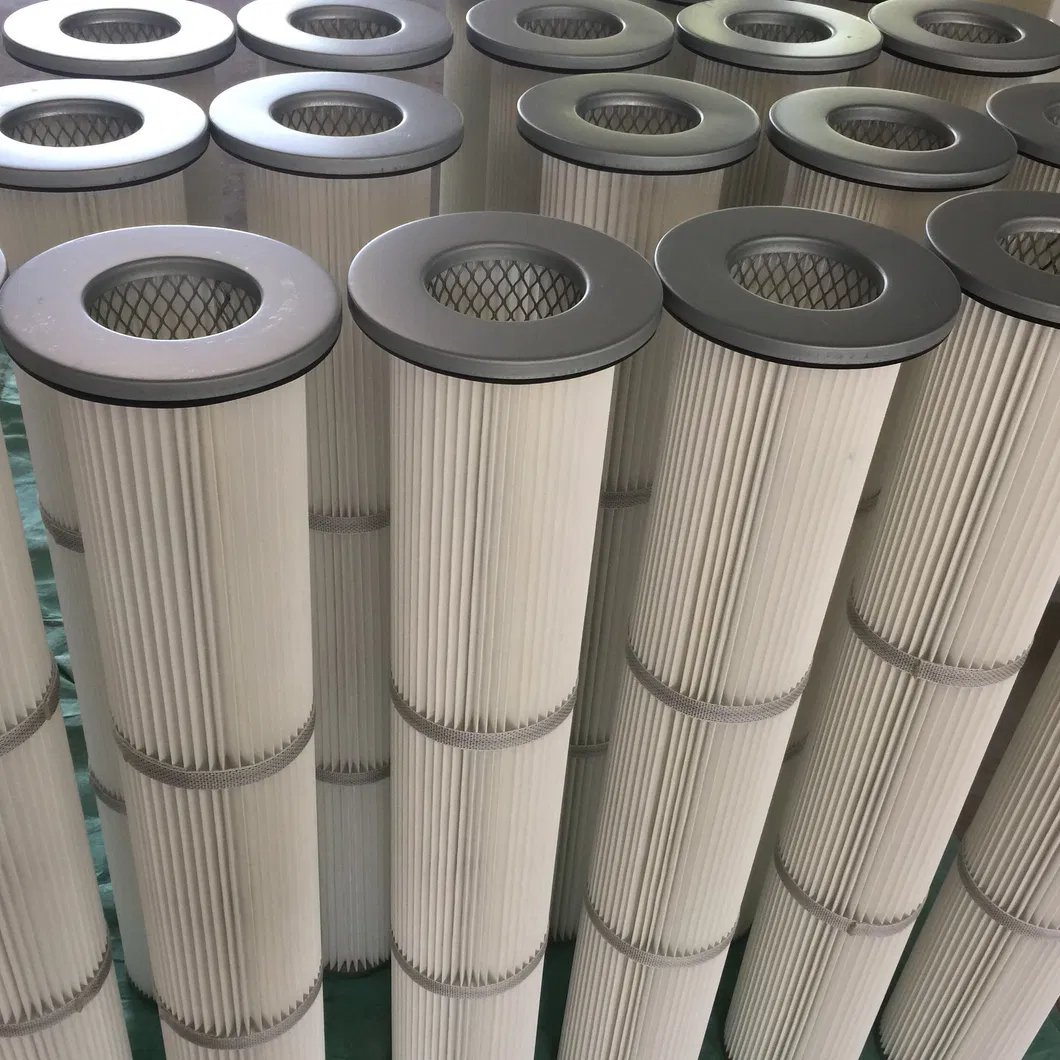

Filter cartridge

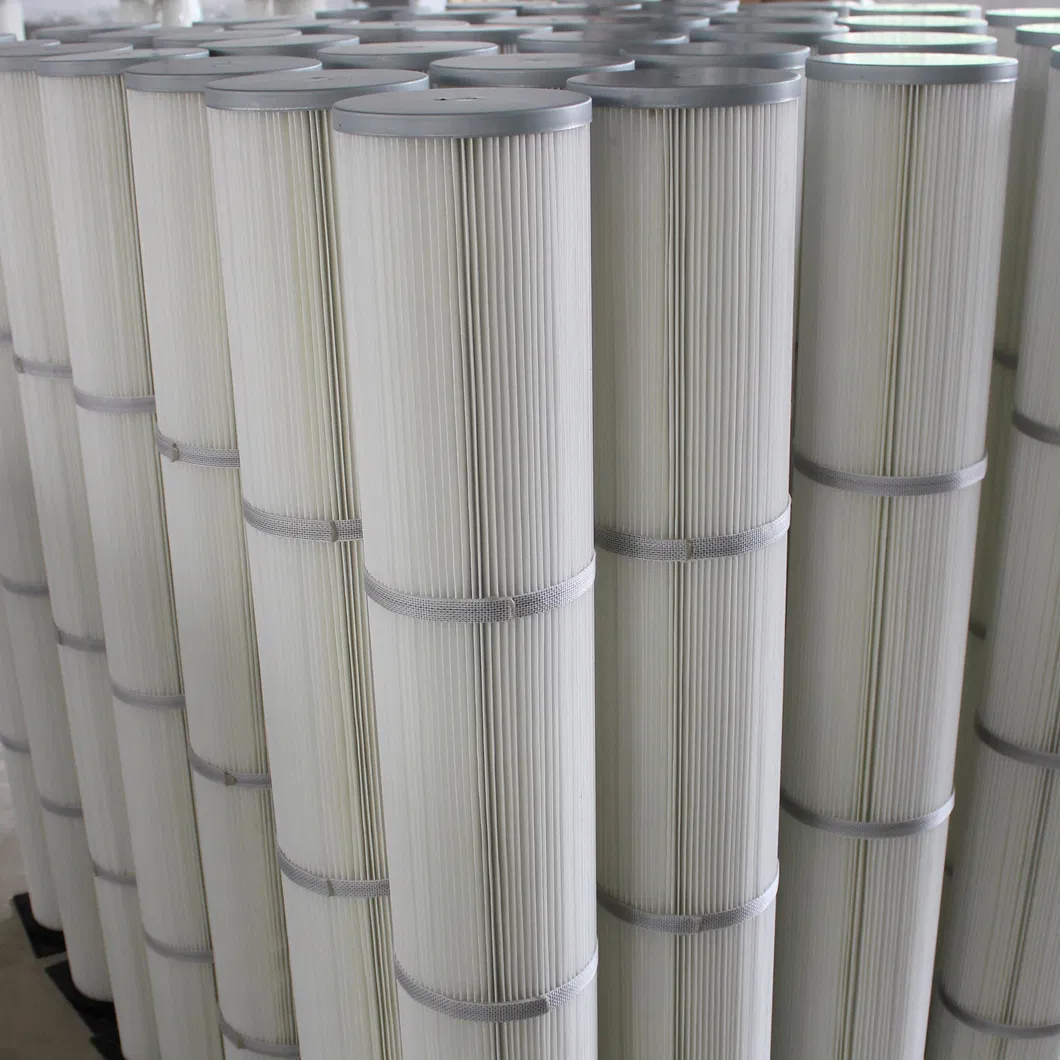

Industrial Filter

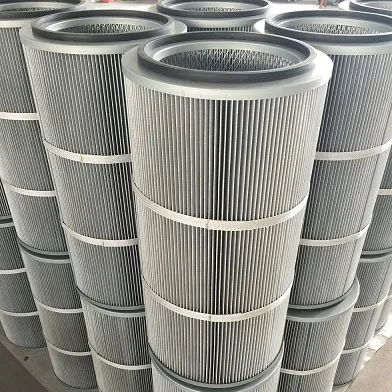

Powder Coating Filter

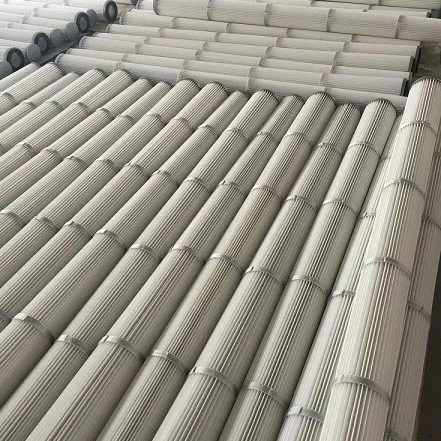

Air Cleaning Cartridge

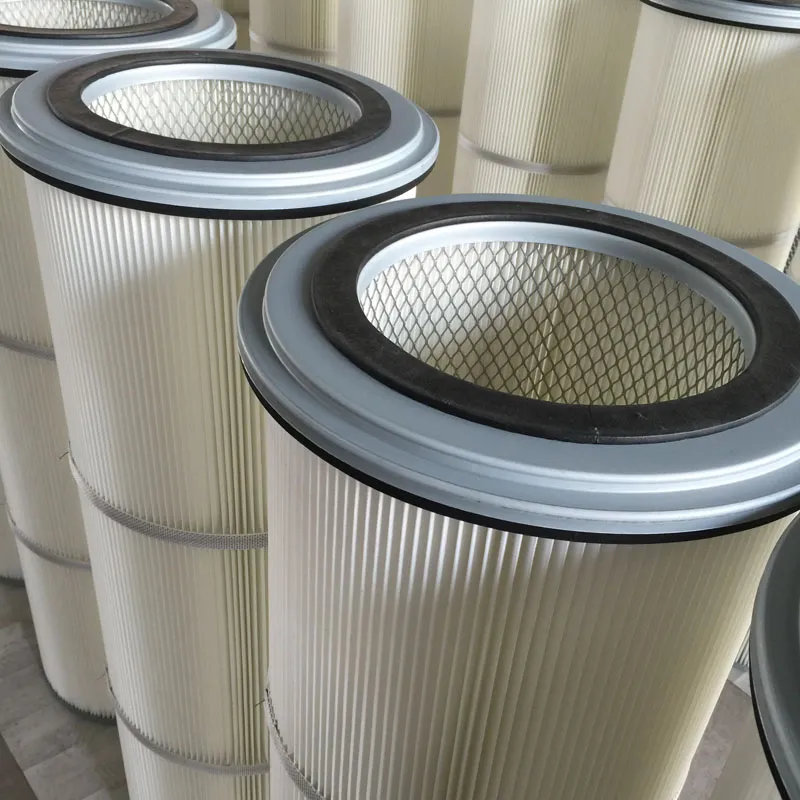

Filter Details

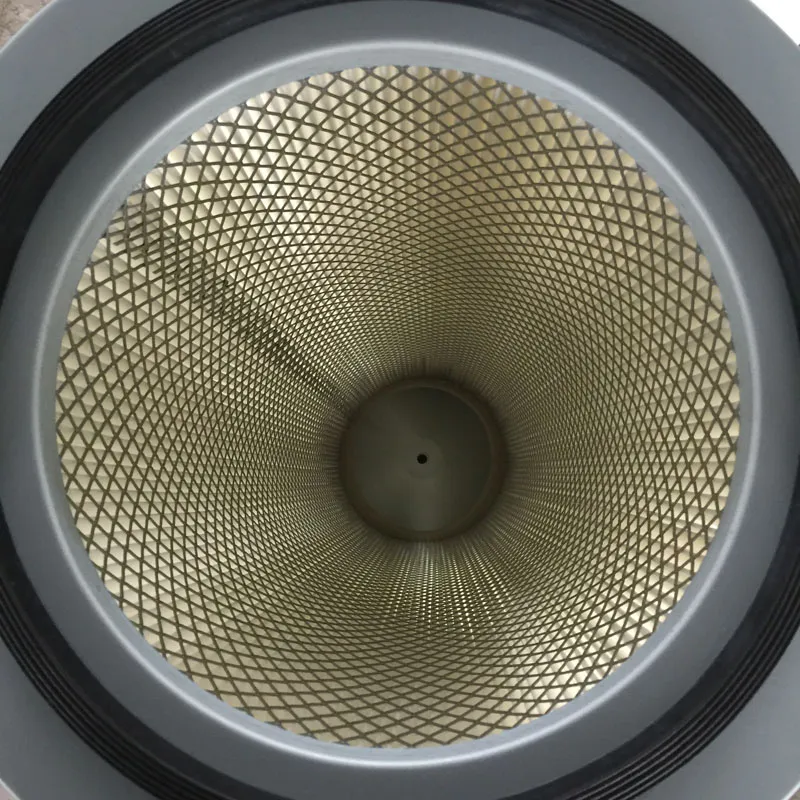

Filter Media

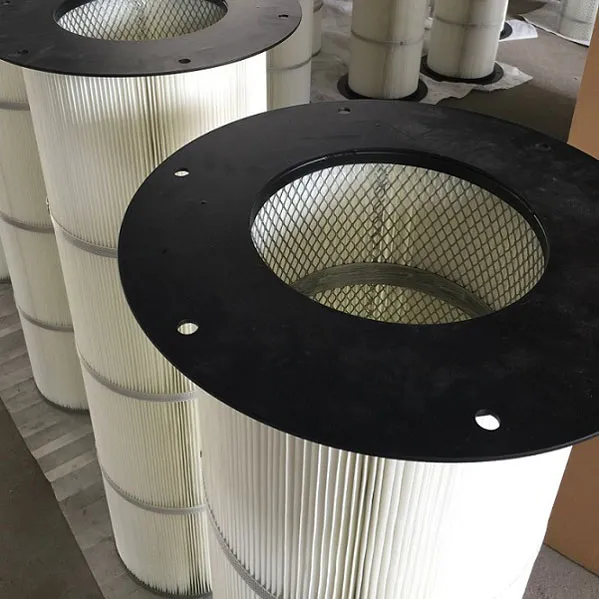

Steel Cap Detail

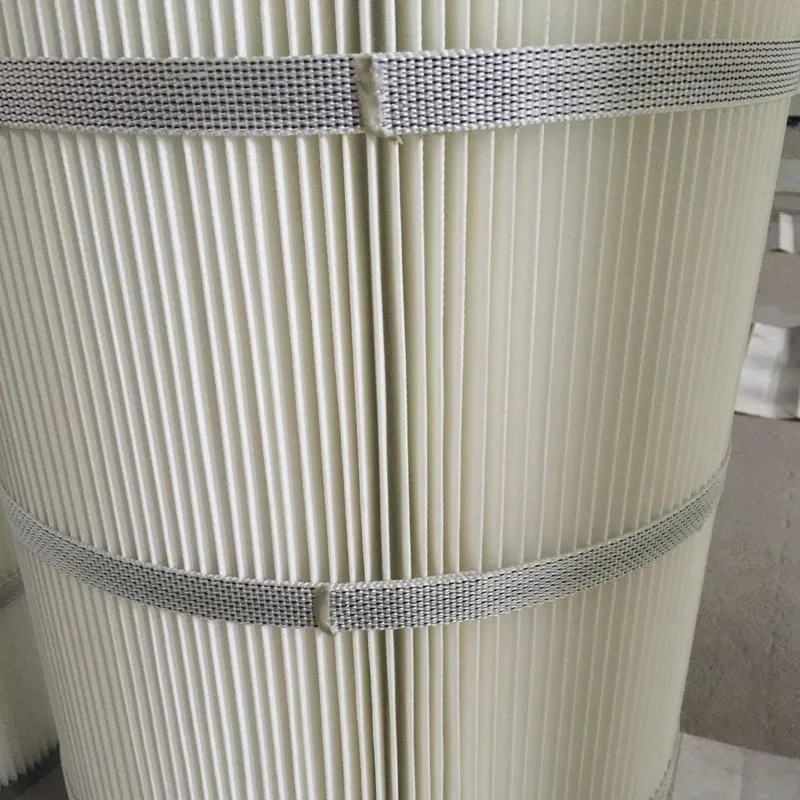

Cartridge View

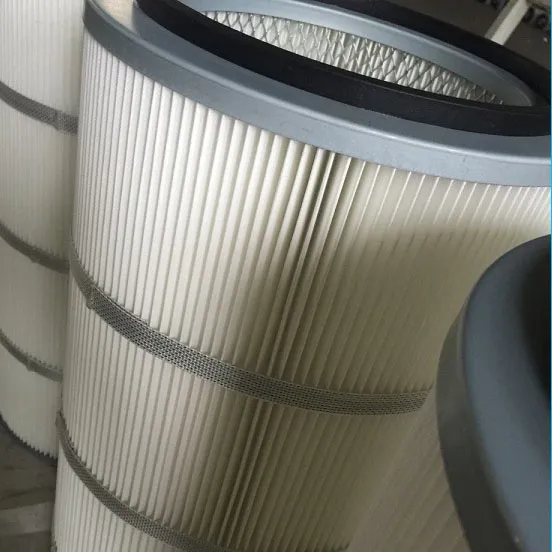

Final Product
❓ Frequently Asked Questions
Q1: What is the primary filtration material used? The filter uses a high-quality blend of 80% cellulose and 20% polyester paper, supplied by Hv America for optimal durability and efficiency.
Q2: What is the filtration efficiency of this cartridge? This model is rated at F9 efficiency, making it a highly effective medium filter for industrial dust collection.
Q3: What are the main industrial applications? It is ideal for powder coating, sand blasting, and other industrial air cleaning processes requiring reliable dust extraction.
Q4: How long does the filter typically last? Under standard operating conditions, the filter has an estimated lifetime of approximately 3000 hours.
Q5: Are there different configurations for the end caps? Yes, we provide multiple options including Open/Open, Open/Closed, Bolt Hole, Drop-in, and Flange configurations to suit different equipment.
Q6: What makes the construction durable? The construction features no-rust steel plates for caps, a galvanized mesh inner core, and reinforcement strip bands for maximum structural integrity.
