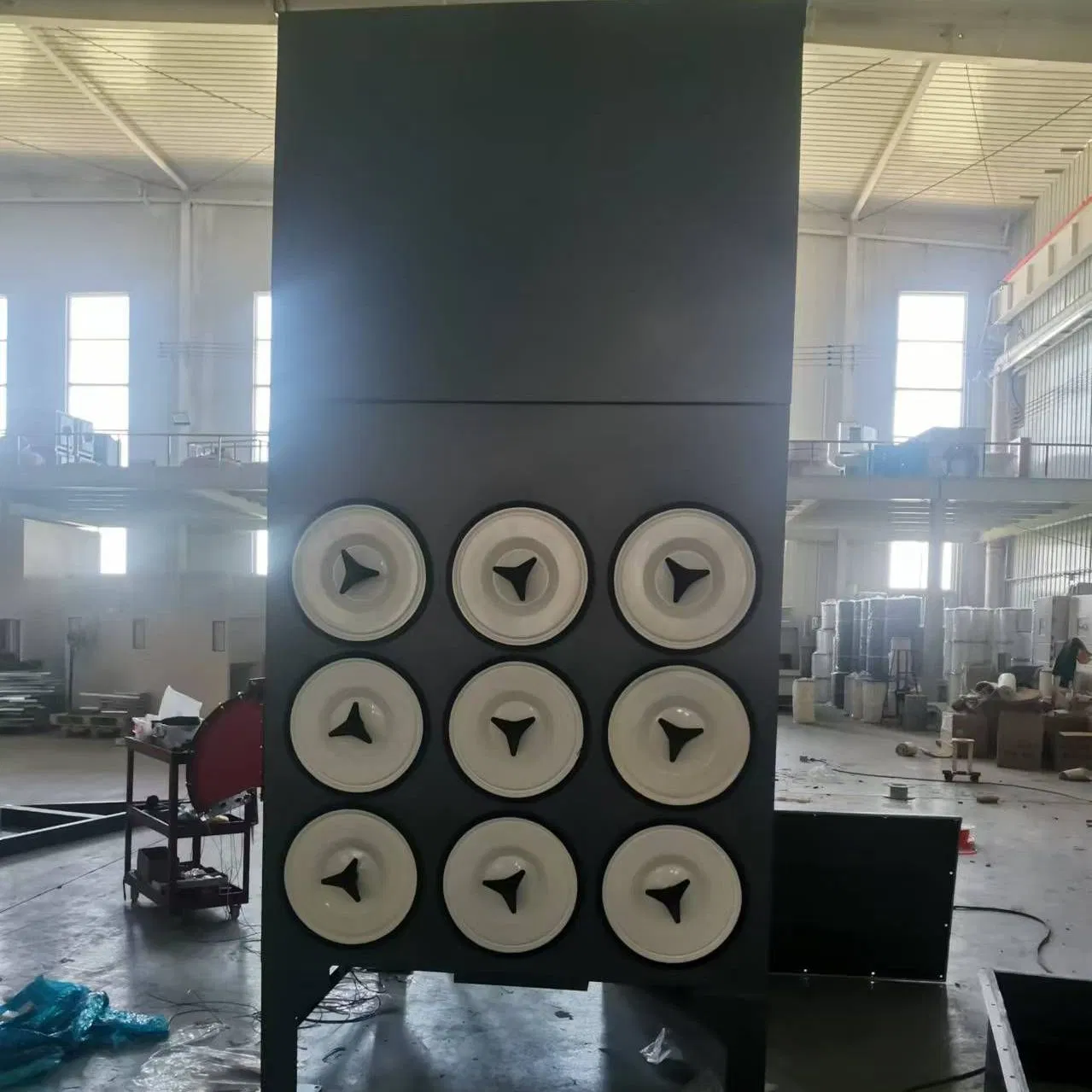

High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
1 / 5
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust
High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust

High Suction and High Quality Pulse Filter Cartridge Dust Collector Filters Industrial Dust

Customization: Available
Certification: CE, ISO
Installation
Method:		 Vertical
Send Inquiry

Product Description

📊

Basic Information

Model NO.
Industrial dust collector
Operation Type
Automatic
Medium Material
Chemical Synthetic Fiber
Dust Collecting Method
Dry
Type
Filter Cartridge Dust Collector
Pulse Valve
2-6
Number of Cartridges
2-6
Objects
Dust, Fumes and Soot
Fan Power
2.2kw-7.5kw
Air Storage Tank
Built-in
HS Code
8421392990
🔍

Product Overview

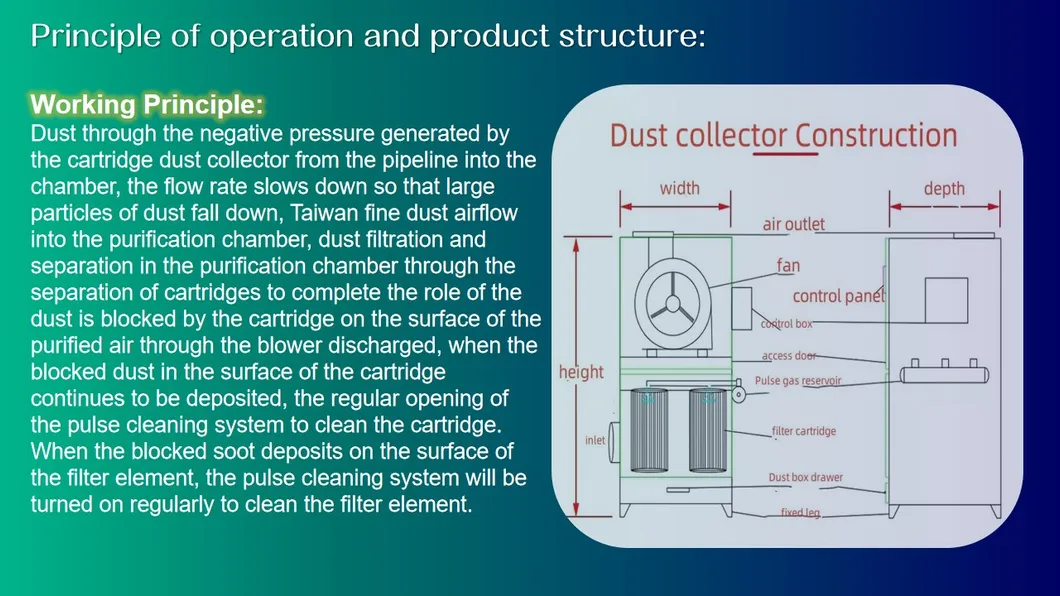

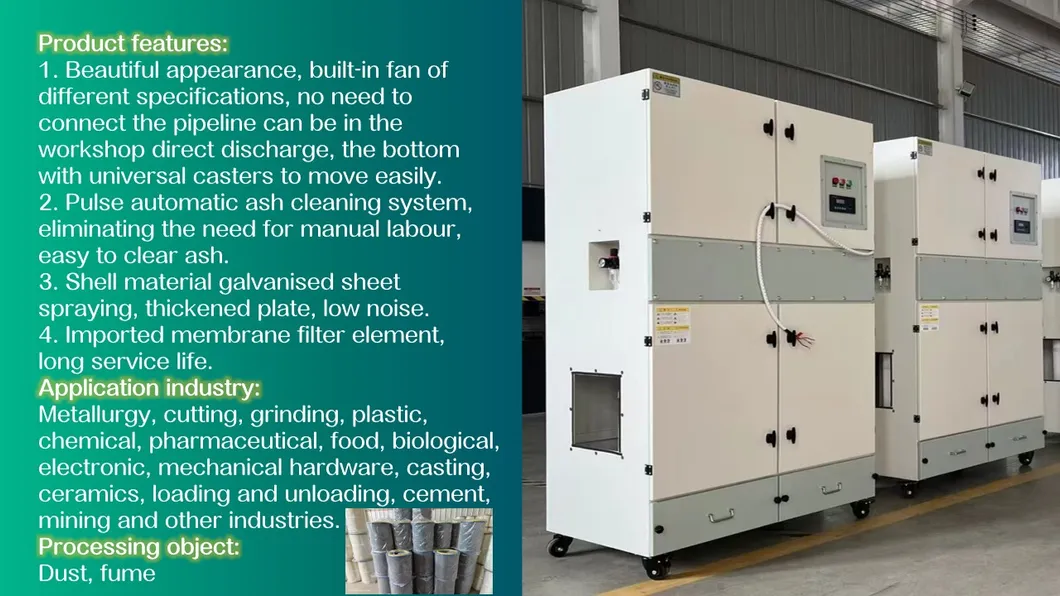

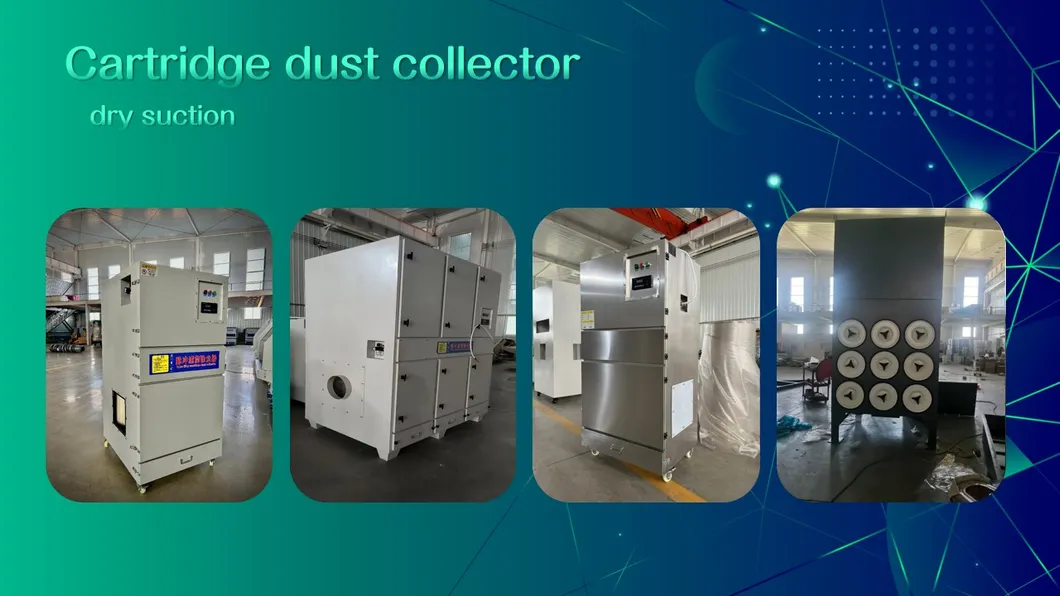

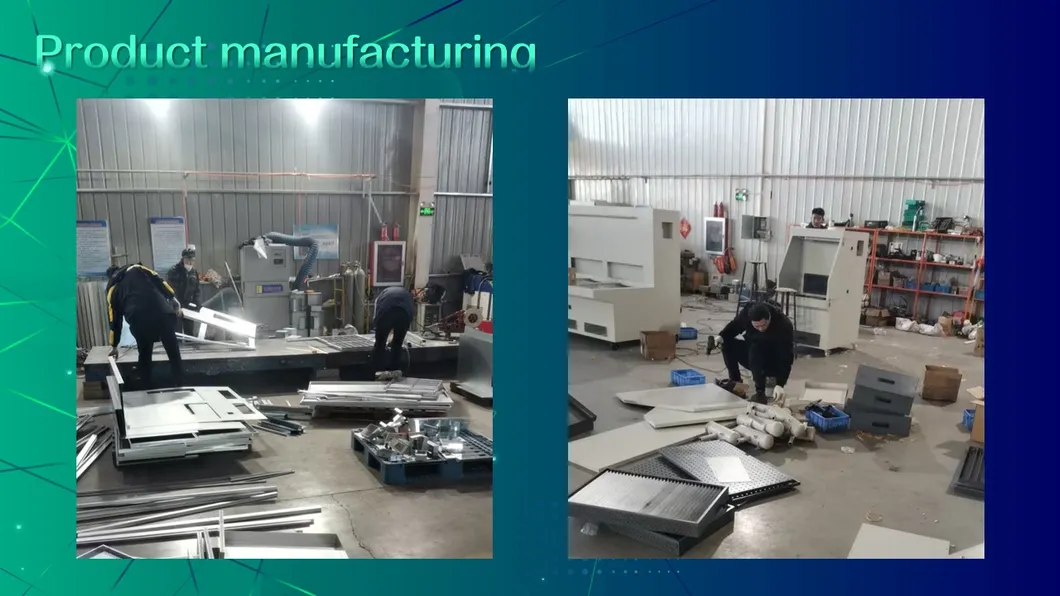

Industrial Dust Collector View 1 Industrial Dust Collector View 2 Industrial Dust Collector View 3 Industrial Dust Collector View 4 Industrial Dust Collector View 5
📐

Product Parameters

Product Size Fan Power Filter Cartridge Material/Size Number of Cartridges Plate Thickness Air Storage Pulse Valve
800*600*1700 2.2KW Fibre material/325*500 2 1.2mm inbuilt 2
800*600*1700 3.0KW Fibre material/325*500 2 1.2mm inbuilt 2
800*800*1700 3.0KW Fibre material/325*500 4 1.2mm inbuilt 4
800*800*1800 4.0KW Fibre material/325*500 4 1.2mm inbuilt 4
1000*1000*1900 5.5KW Fibre material/325*660 4 1.5mm inbuilt 4
1200*1000*2150 7.5KW Fibre material/325*660 6 2mm inbuilt 6
⚙️

Product Components

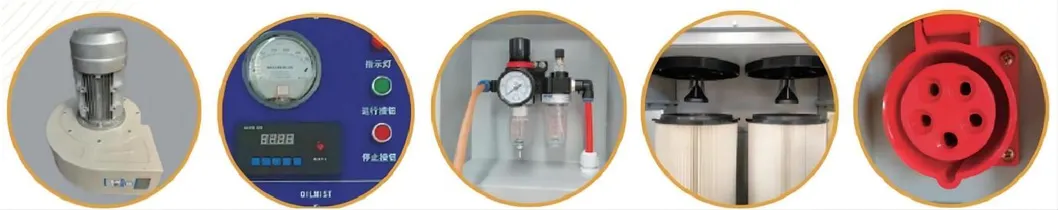

Component Diagram

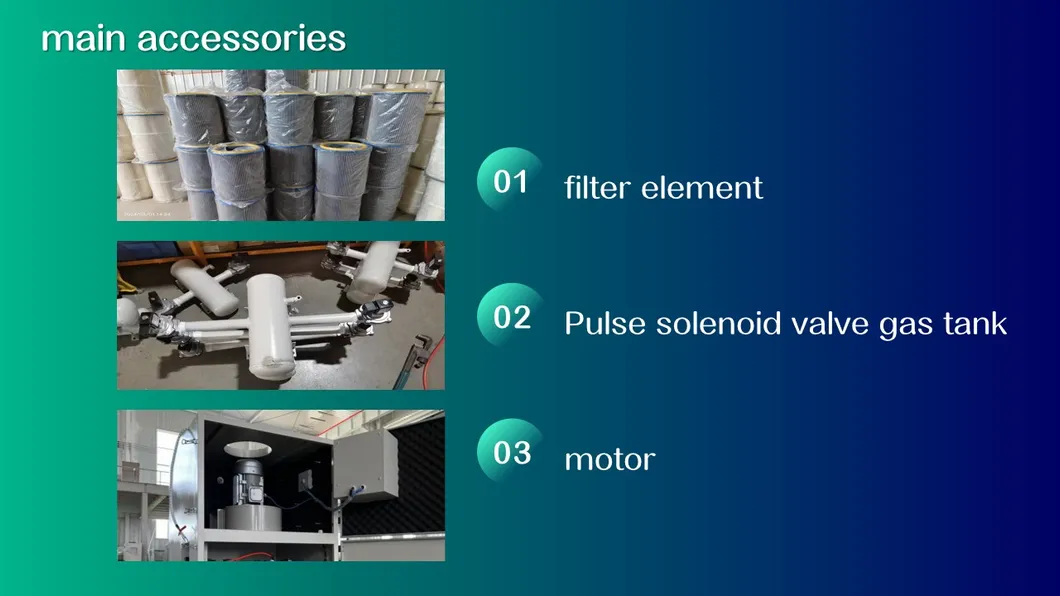

Component Detail 1 Component Detail 2 Component Detail 3
Operational View
❓

Frequently Asked Questions

What types of particles can this industrial dust collector handle?
The system is specifically designed to collect dry dust, fumes, and soot using high-efficiency chemical synthetic fiber filter cartridges.
How does the automatic cleaning system work?
It features an automatic pulse valve system (2-6 valves depending on the model) that uses compressed air to periodically clean the cartridges, ensuring consistent suction.
Is the air storage tank external or integrated?
The air storage tank is built-in (inbuilt) to the unit, providing a more compact footprint and protecting the tank from external damage.
What range of fan power is available for different requirements?
We offer multiple power configurations ranging from 2.2kW for smaller applications up to 7.5kW for heavy-duty industrial extraction.
What are the main construction materials used for the filter?
The filtration medium is made of durable chemical synthetic fiber, and the machine body uses steel plates with thicknesses ranging from 1.2mm to 2mm.
Is this dust collector suitable for wet extraction?
No, this is a dry-type dust collecting method. It is designed for dry particles and should not be used for liquid or highly saturated wet materials.
