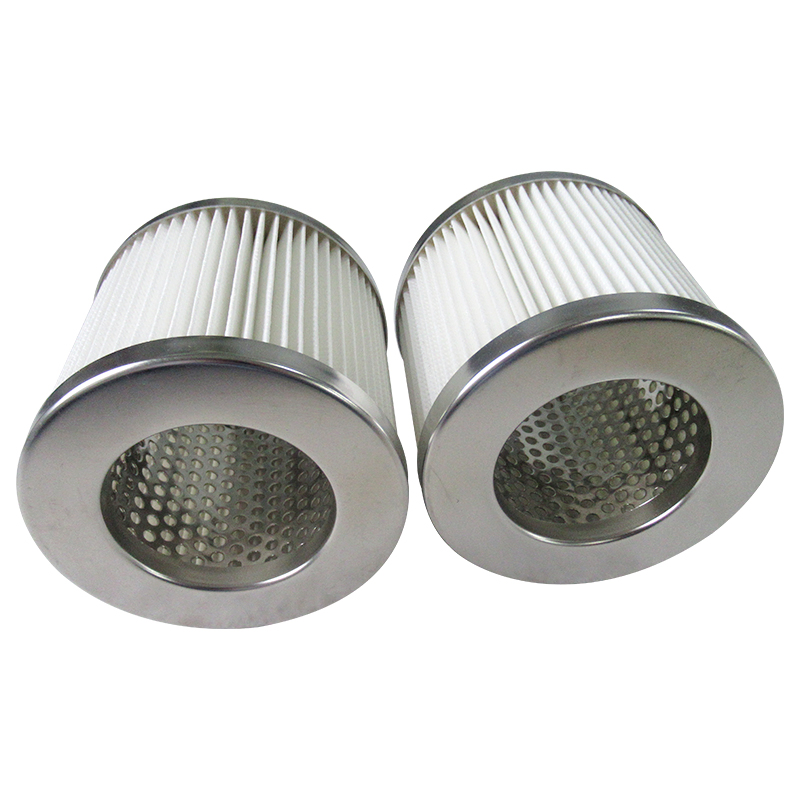

High-Efficiency Dust Collector Cartridge Filter for Industrial Use

1 / 5

High-Efficiency Dust Collector Cartridge Filter for Industrial Use

Customization:	Available
Certification:	CE, ISO, SGS
Installation Method:	Vertical

Send Inquiry

Product Description

📊

Basic Information

Model NO.	air dust filter
Operation Type	Manually
Medium Material	Chemical Synthetic Fiber
Dust Collecting Method	Dry
Type	Filter Cartridge Dust Collector
Model	P527078
Filtration material	polyester
Pleat Type	Pleated round air filter
Application	laboratories, aseptic operating rooms and various
End caps	Open
Custom made	Accept
MOQ	1 PCS for sample
Direct factory	Yes
Certificates	ISO9001:2015
Size	110x100
Origin	China
Production Capacity	100000/Month

📦

Packaging & Delivery

Package Size	26.00cm * 25.00cm * 36.00cm
Package Gross Weight	2.600kg

📝

Product Description

We can manufacture filters as your requirement. Please kindly advise photo and size. Welcome OEM & ODM!

Kindly inform us following information:
1. Photo
2. ID, OD, Height
3. Filtration Precision
4. End Cap

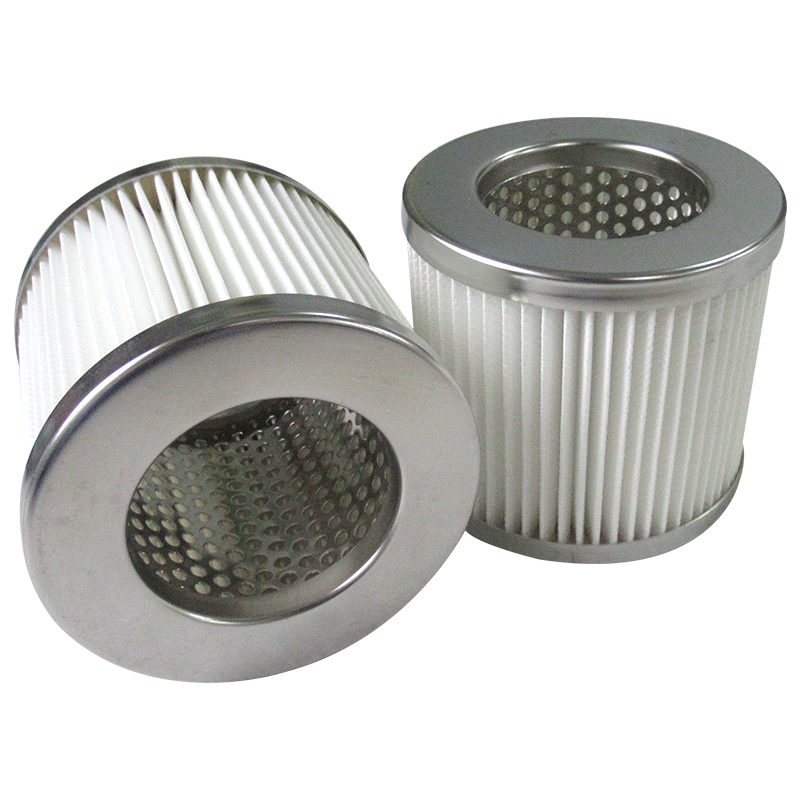

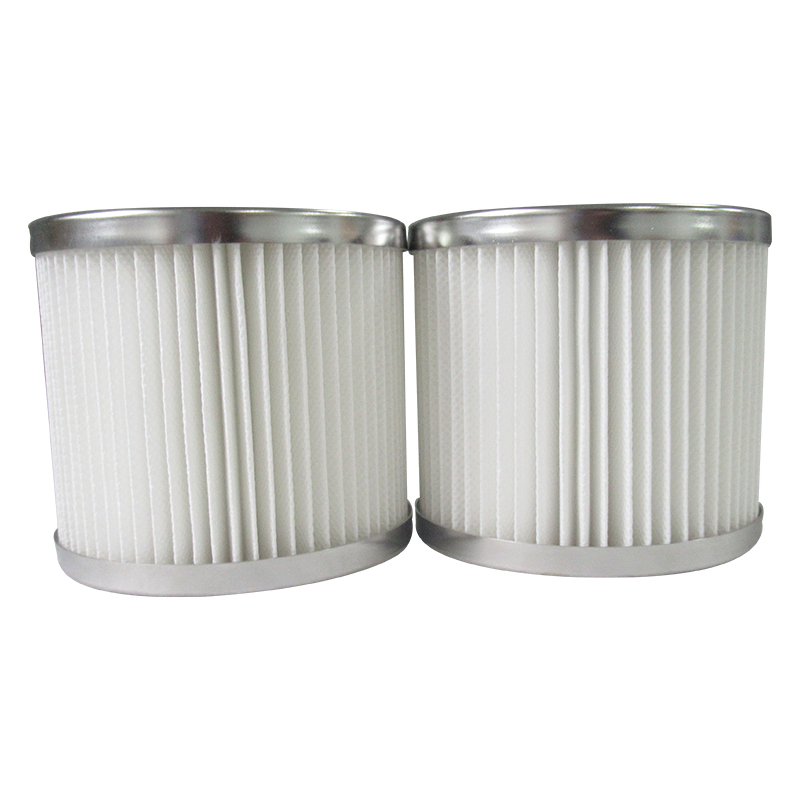

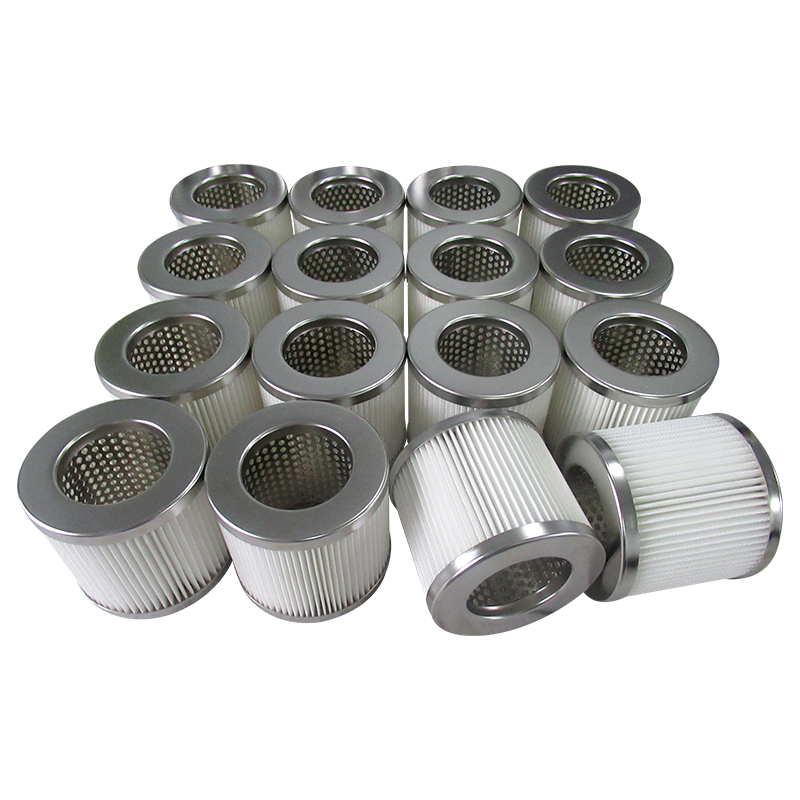

High-Efficiency Dust Collector Cartridge Filter

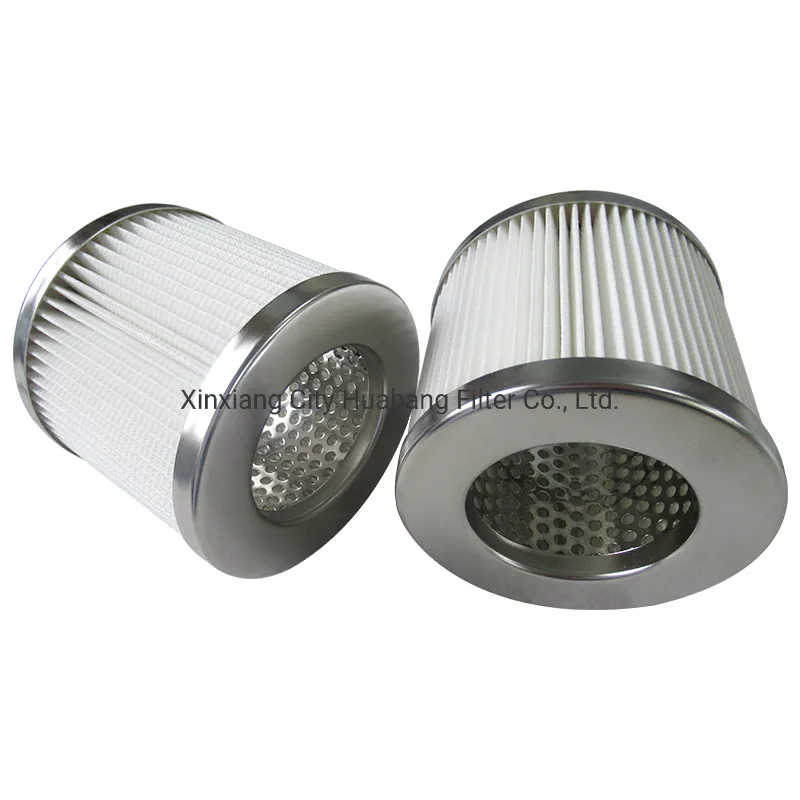

Features:

Variety of configurations: Conical/Cylindrical, Conical/Conical, and Cylindrical/Cylindrical are ideal for gas turbine air inlet applications.
High surface areas, low pressure drop and can be installed either horizontally and vertically.
Wide pleated depth, large air flow.
Inner and outer liner.
Galvanized anti-corrosion metal construction.

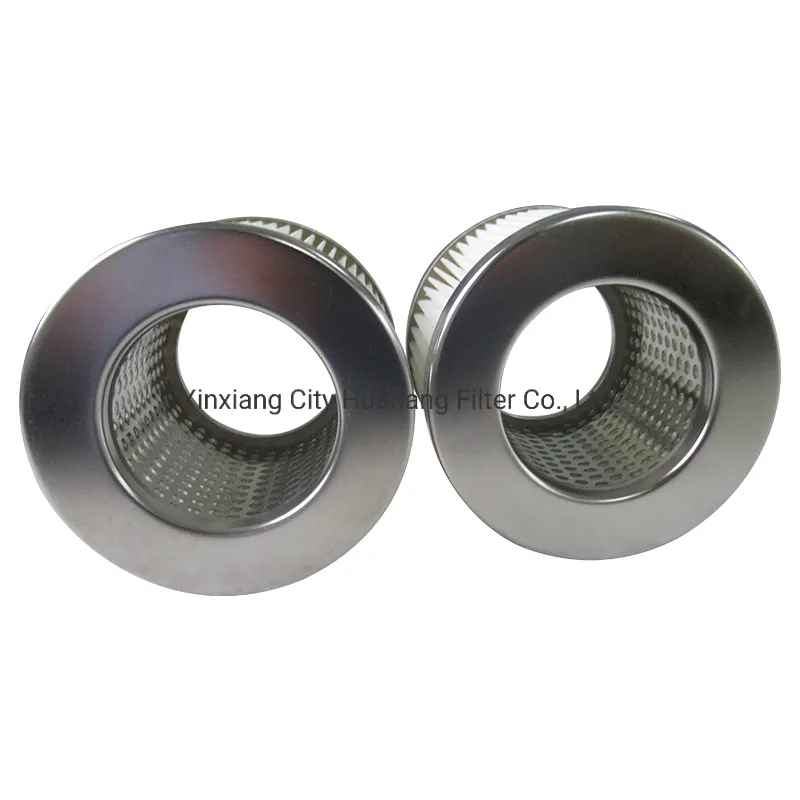

Construction:

Shape: Conical/Cylindrical, Conical/Conical, and Cylindrical/Cylindrical
Top cap: Galvanized steel, no rust.
Gasket: EPDM material to ensure airtight sealing.
Inner mesh: Galvanized steel.
Outer mesh: Galvanized steel with or not hot melt glue.
Bottom cap, open/closed: Galvanized steel.

No Corners Cut on Materials: Our filters weigh more on average than the competitions' because of heavier, more durable materials. Quality materials make a filter last longer.

⚙️

Technical Data

Filter media: 100% Polyester, 100% Cellulose, Blend polyester and cellulose.
Appearance: Grey
Filtration Area(m²): Varies available, per your request
Area Weight: 240-260G/M²
Thickness: 0.60-0.75mm
Powder Permeability: 1-5u
Filtration Efficiency: 95%-99.99%

🛠️

Selected Post-processing

PTFE Membrane
Anti-static Membrane
Oil, water proof
Flame-retardant

📋

Specification of Air Filter Cartridge

Cartridge Model	Top Cap OD mm	Top Cap ID mm	Bottom Cap OD mm	Bolt Hole mm	Height mm	Filtration Surface (m²)
TR/P 3266	Φ324	Φ213	Φ324	Φ14	660	9.4
TR/P 3275	Φ324	Φ213	Φ324	Φ14	750	10.6
TR/P 32100	Φ324	Φ213	Φ324	Φ14	1000	14.2
TR/P 3566	Φ352	Φ241	Φ352	Φ16	660	10
TR/P 3575	Φ352	Φ241	Φ352	Φ16	750	11.3
TR/P 35100	Φ352	Φ241	Φ352	Φ16	100	15.1

🔍

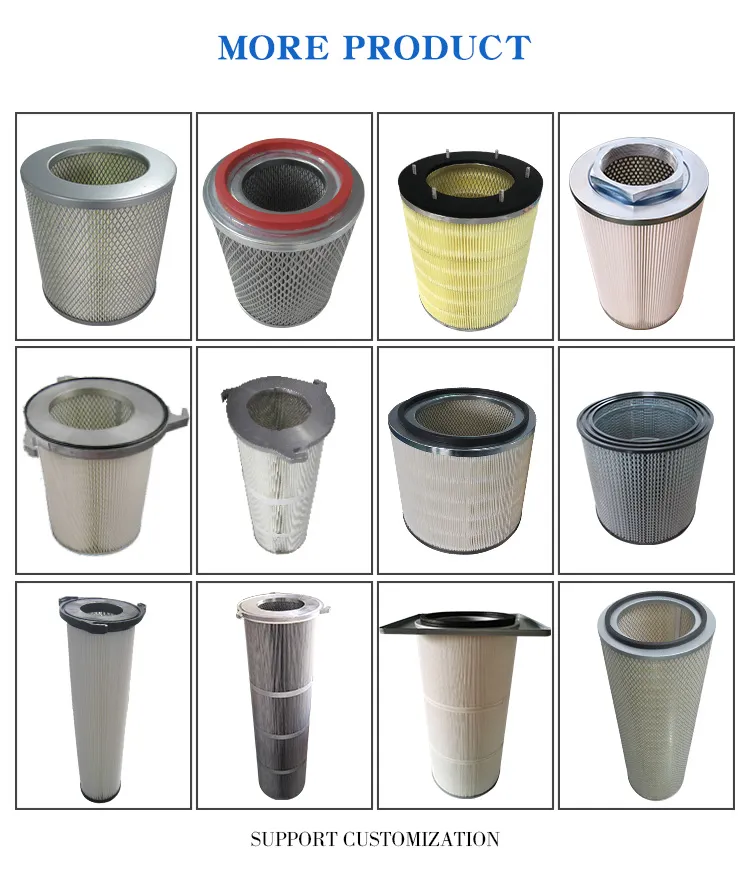

Related Products

🏭

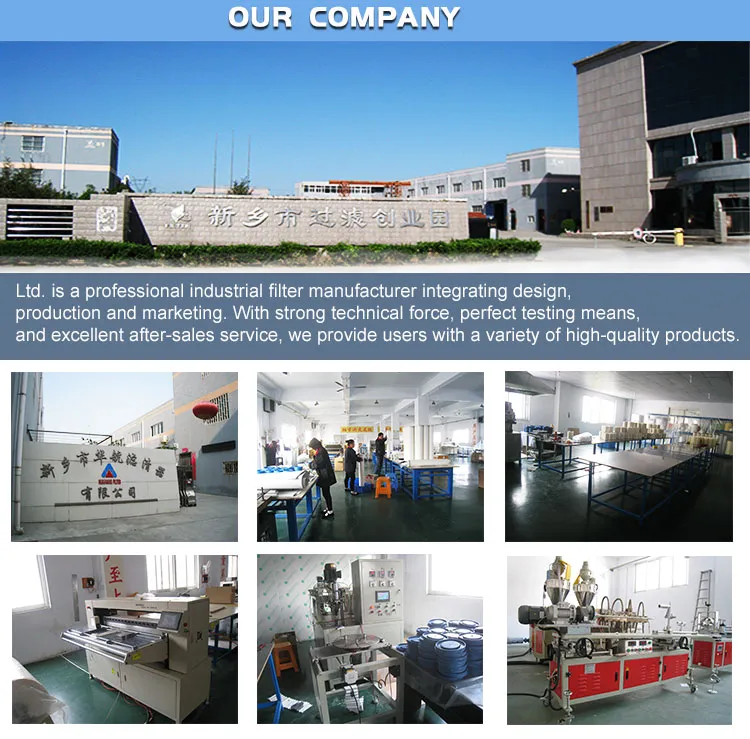

Factory & Production Display

❓

Frequently Asked Questions

Q1. How is the quality of your filter products ensured?

Our manufacturing processes are certified under the ISO9001:2015 quality management system, and most products carry CE production certification to ensure high standards.

Q2. What is the standard warranty period?

We provide a 1-year warranty. Under correct installation and normal operating conditions, any quality issues will be addressed with free re-production of the goods.

Q3. What is the typical delivery timeframe?

Orders are usually processed and shipped within 7-10 working days after payment is confirmed.

Q4. How are the products packaged for shipment?

Products are secured with internal cartons and external wooden crates, or as per your specific requirements, and can be shipped via express, air, or sea.

Q5. Do you offer technical support and customization?

Yes, with over 16 years of filtration experience, we offer full customization and patient technical advisory for any inquiries regarding our filter elements.

Q6. Are all filter elements tested before they are sent?

Absolutely. Every filter element undergoes rigorous testing before shipment to guarantee performance and reliability upon arrival.
