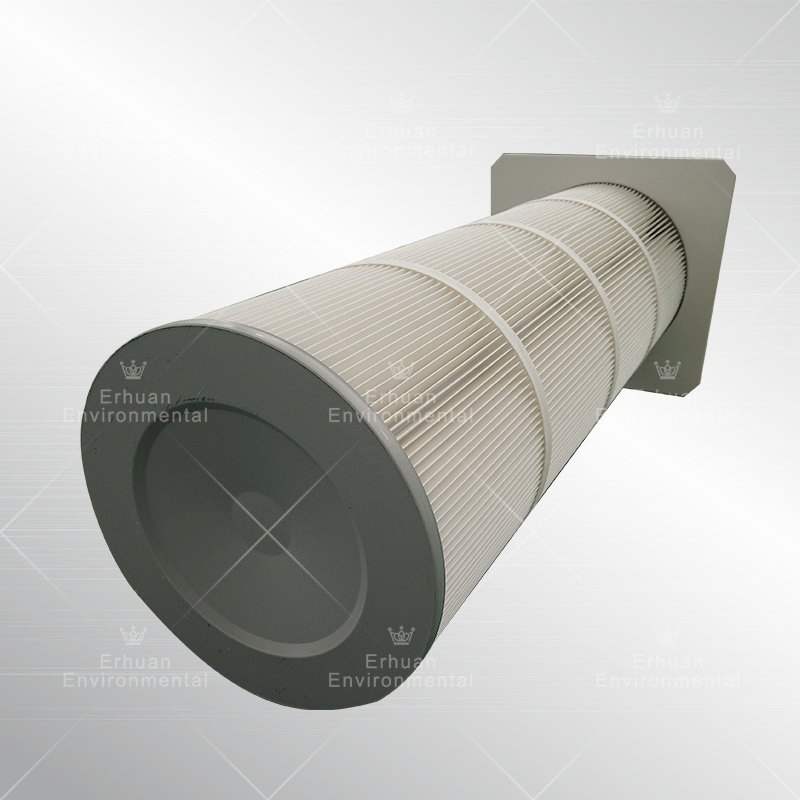

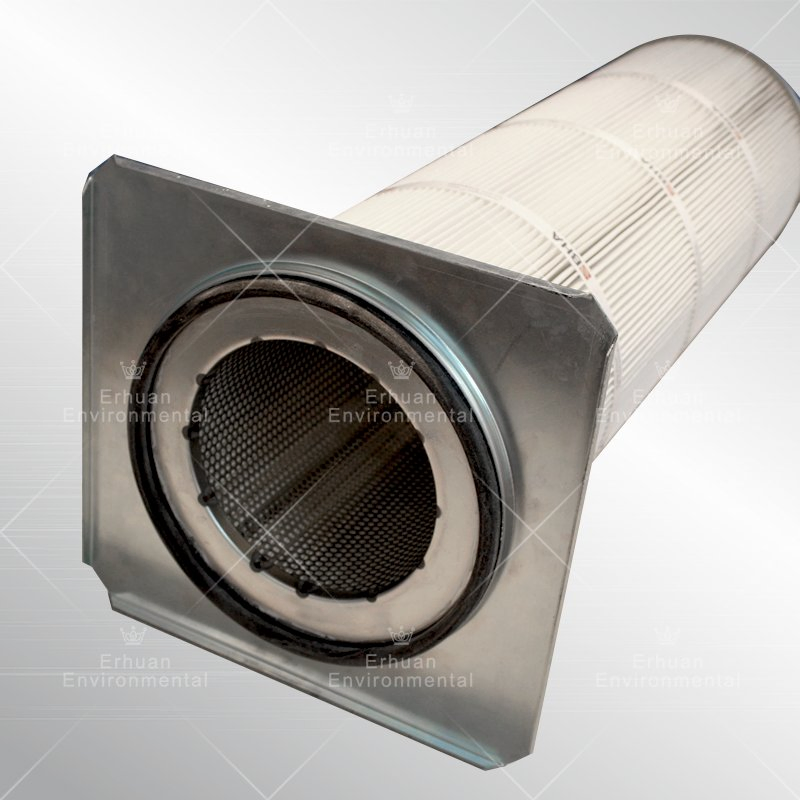

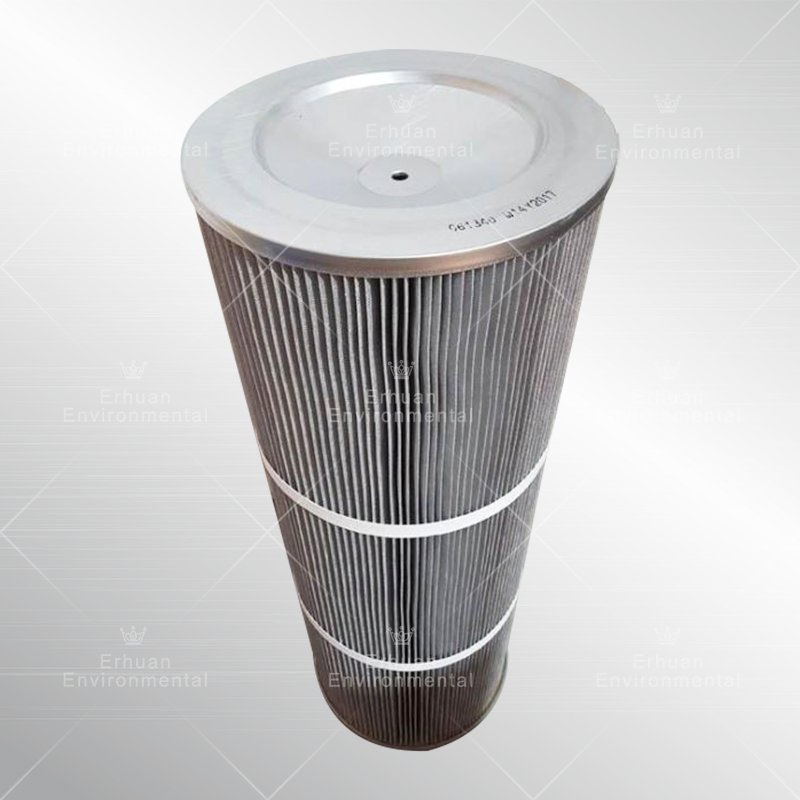

Erhuan Industrial Cylindrical Dust Collector Air Filter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

EH-3566

Type

Filter Cartridge

Cartridge Media

Non-Woven Polyester Fiber

Filtration Grade

Medium Filter (MERV 10)

Dimensions

OD 12.75" X ID 8.37" X H 26"

Filter Area

100 FT²

Efficiency

0.5 micron 99.98%

Max Temp

82°C

Cap Material

Electro Galvanized

Gasket

3/8" X 3/8" X 9.55ID

Packaging & Logistics

Package Size

35.00cm * 35.00cm * 66.00cm

Gross Weight

8.000kg

Transport

Carton with Pallet

Product Description

📊

Polyester Cartridge Collector Filters (EH/P3566): Get cost-effective replacement industrial cartridge filters for your cartridge collector! We supply pulse jet dust collector cartridge filters that offer high efficiency across various applications.

We offer a variety of specialized materials to match your facility's specific requirements:

Cellulose: Ideal for welding, laser/plasma cutting, general industrial dust, coal, and plastics.
Nanofiber: Advanced filtration for abrasive blasting, pharmaceuticals, powder paints, and carbon black.
80/20 Cellulose Polyester Blend: Best for blasting, paint booths, and general dust particles.

Additional treatments available include PTFE membrane, anti-static, and fire retardant coatings.

Technical Comparison

Base Media	Efficiency	Max Temp	Abrasion Resistance	Characteristics
Polyester/Spunbond	MERV 10	82°C	Excellent	Wide pleat spacing, moisture tolerant, abrasion resistive.
Polyester with PTFE	99.99%+	82°C	Excellent	Microporous membrane, chemical erosion resistance.
Flame Retardant Media	MERV 10	82°C	Excellent	Zinc galvanized metal inner core, optimal for high-risk sparks.

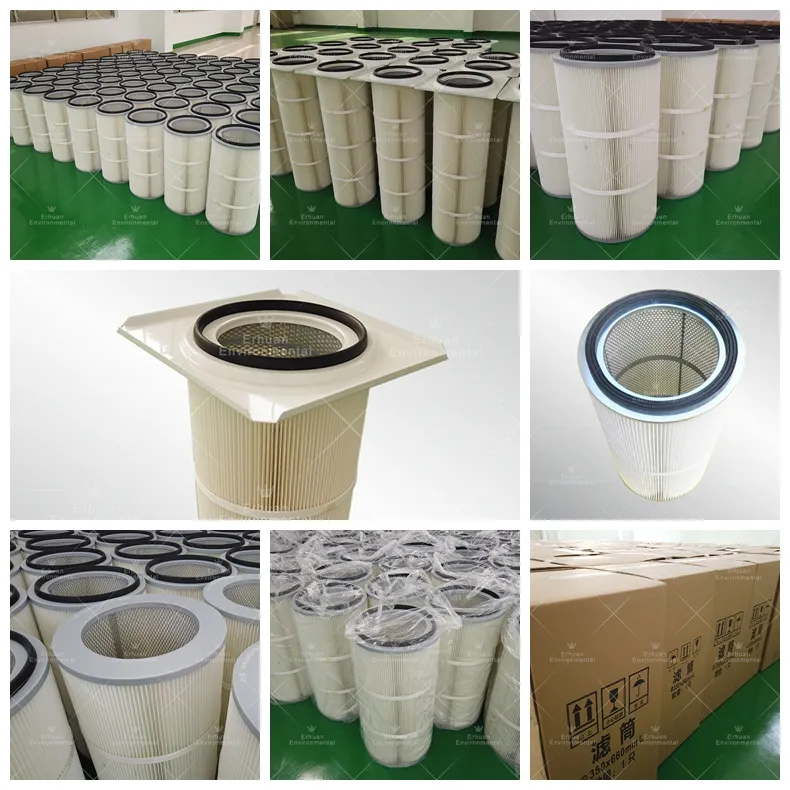

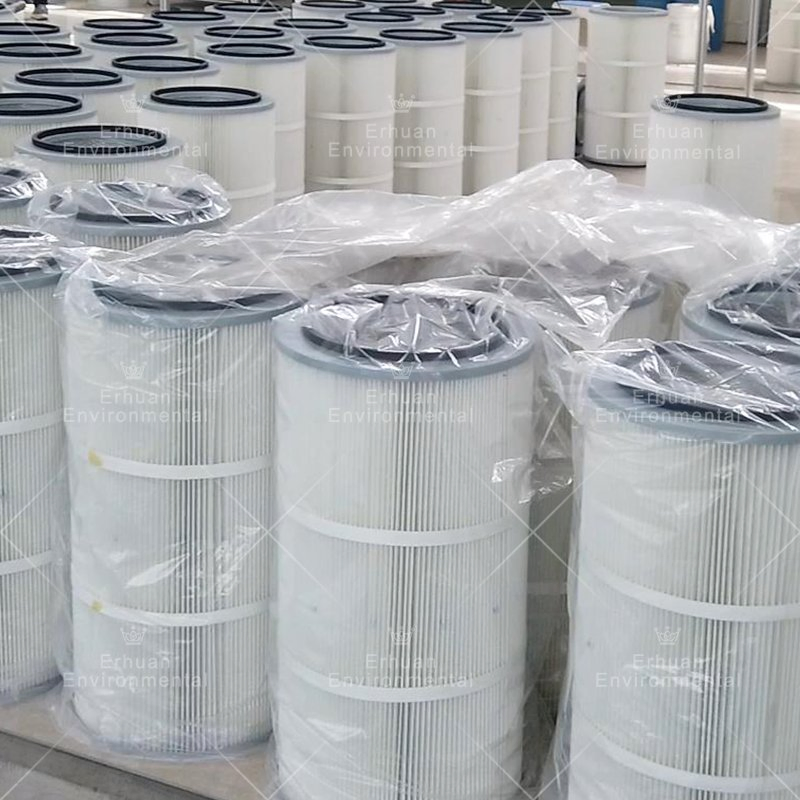

Industrial Cylindrical Dust Collector Air Filter Detail

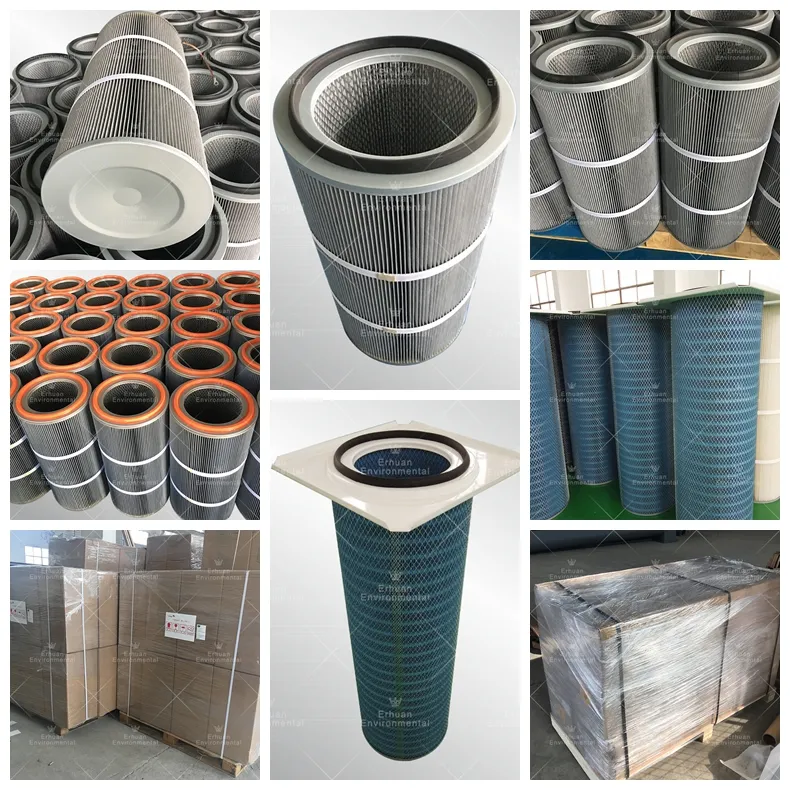

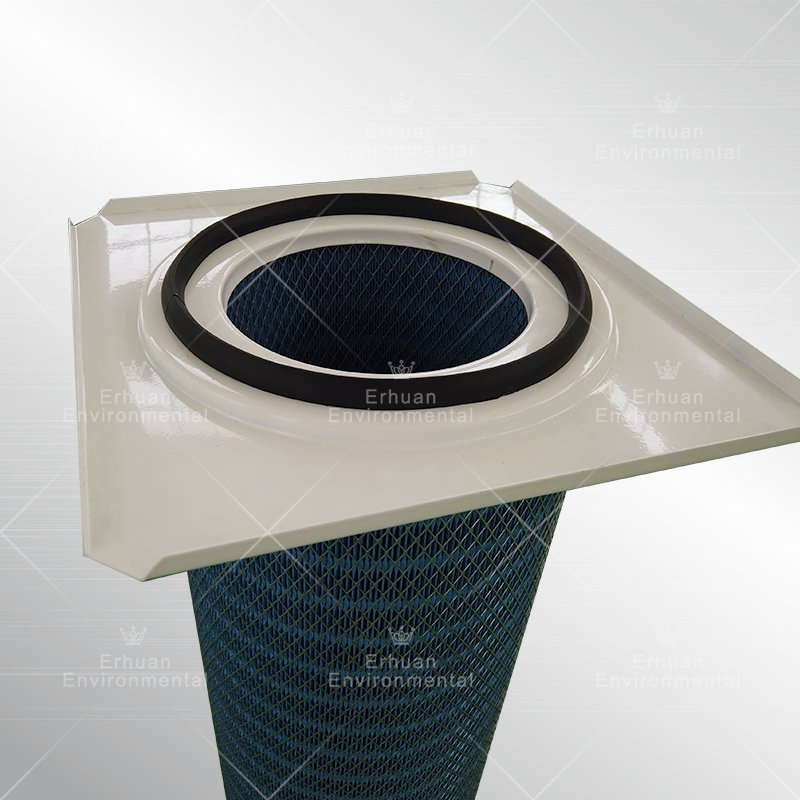

Industrial Cylindrical Dust Collector Air Filter Top View

Model Specifications

Model	Outer Diameter	Inner Diameter	Length	Filtration Surface
EH/P3266	324mm	213mm	660mm	9.4m²
EH/P3566	352mm	241mm	660mm	9.4m²
EH/P3275	324mm	213mm	750mm	10.7m²
EH/P3288	324mm	213mm	880mm	12.5m²
EH/P3290	324mm	213mm	915mm	13.0m²

🛡️

Combustible Dust Safety: With extensive experience in dust collection, our filters can be fitted with explosion protection technologies such as explosion venting or flameless suppression to suit your site requirements.

Frequently Asked Questions

❓ What should I consider when purchasing air filter cartridges?

It is critical to choose the correct size (OD, ID, and Length), the appropriate micron rating for your specific particles, and the right filter material (e.g., Polyester vs. Cellulose) for your environmental conditions.

❓ What are the advantages of Polyester Spun-bonded media?

Polyester media typically offers more pleats and a larger filter area (9-10 square meters) compared to standard specifications. It is highly durable, moisture-tolerant, and suitable for high concentrations of dust.

❓ Can these cartridges handle high temperatures?

The EH-3566 model is designed for a maximum operating temperature of 82°C (180°F), making it suitable for most standard industrial air filtration applications.

❓ Are there specific filters for laser or plasma cutting?

Yes, for laser and plasma cutting, we recommend Nanofiber or Cellulose media with Flame Retardant treatments to manage fine particles and potential sparks safely.

❓ What filtration efficiency can I expect?

Standard polyester filters provide MERV 10 efficiency, capturing 99.98% of 0.5-micron particles. For even higher requirements, PTFE membrane versions can offer 99.99%+ efficiency.

❓ Are these filters compatible with major dust collector brands?

Our cartridges are designed as high-quality, cost-effective replacements for several major brands, ensuring seamless integration and optimized airflow for your existing clean air plenum configurations.
